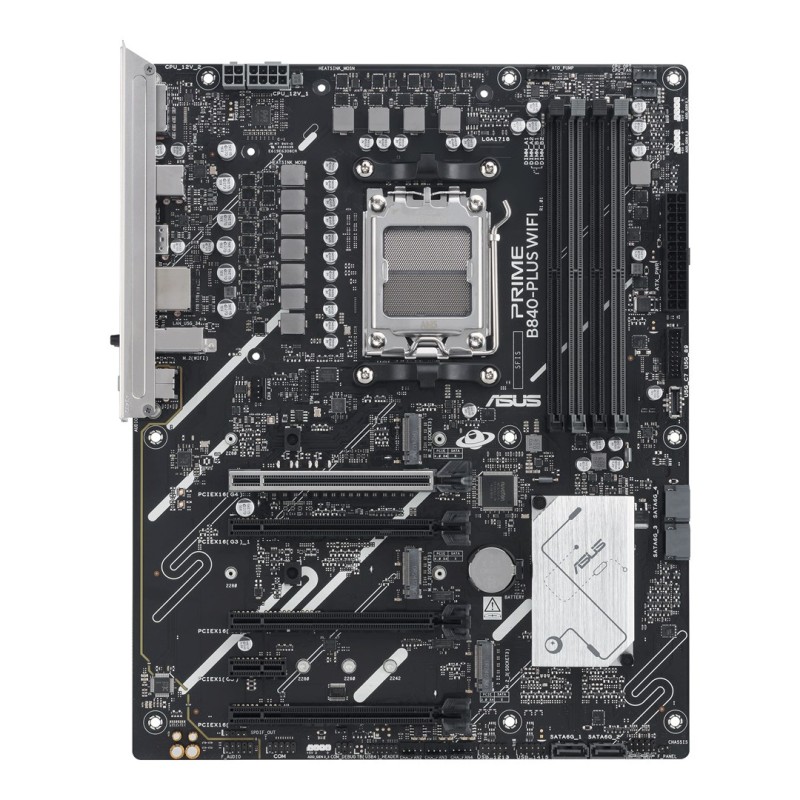

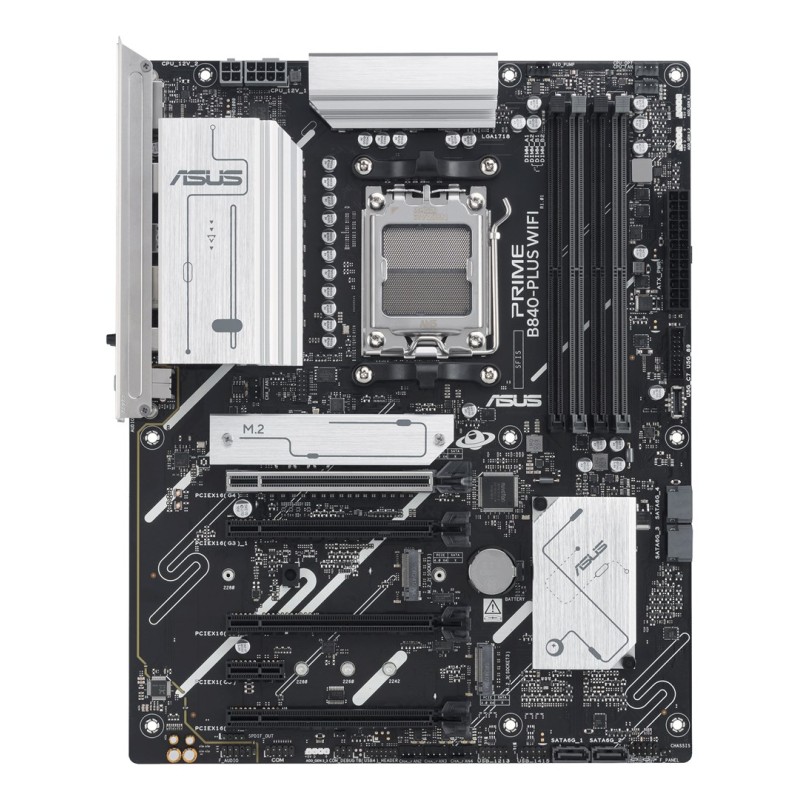

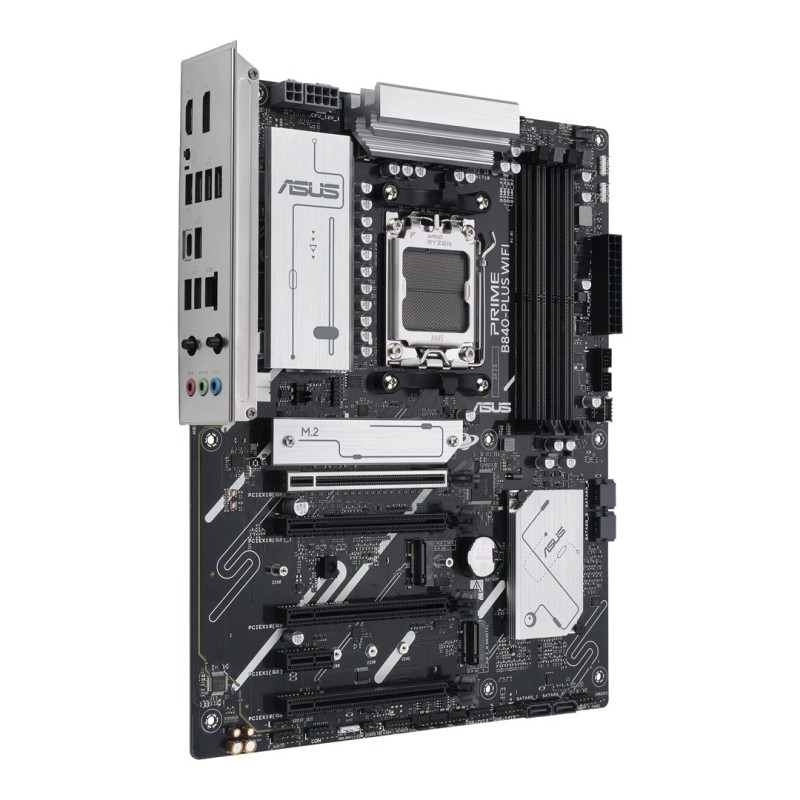

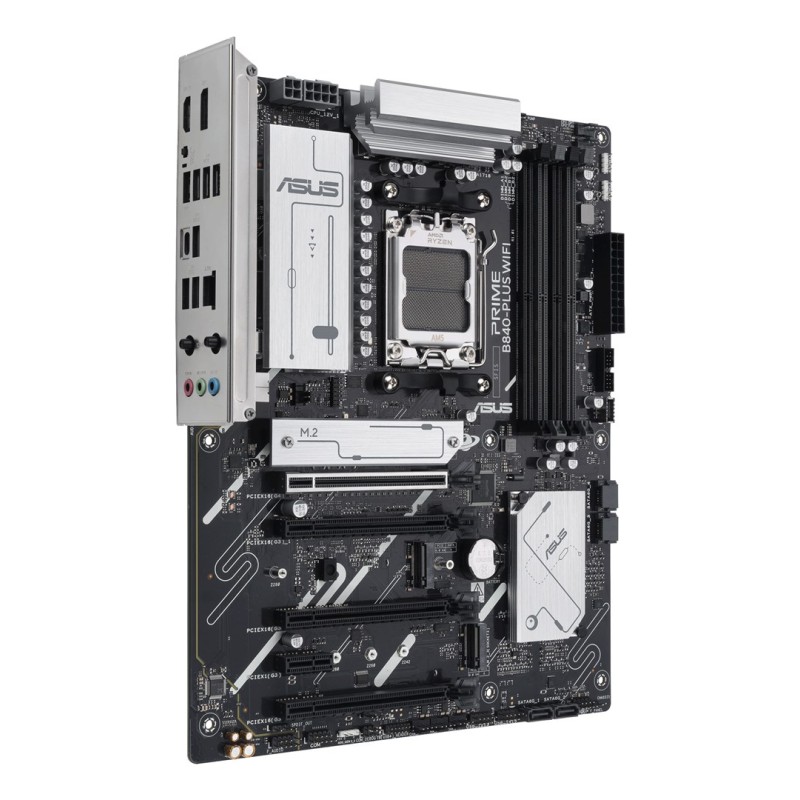

ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Product colour: Aluminium, Black

Motherboard form factor: ATX

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Motherboard chipset: AMD B840

Windows operating systems supported: Windows 11, Windows 10 x64

Memory

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Unbuffered memory: Yes

Number of memory slots: 4

Maximum internal memory: 192 GB

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Bluetooth version: 5.3

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

USB 2.0 connectors: 2

Number of chassis fan connectors: 4

TPM connector: Yes

Thunderbolt headers: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

S/PDIF out connector: Yes

Number of COM connectors: 1

Front panel audio connector: Yes

CPU fan connector: Yes

12V power connector: Yes

Chassis intrusion connector: Yes

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package width: 353 mm

Package height: 68 mm

Package depth: 273 mm

Package weight: 1.26 kg

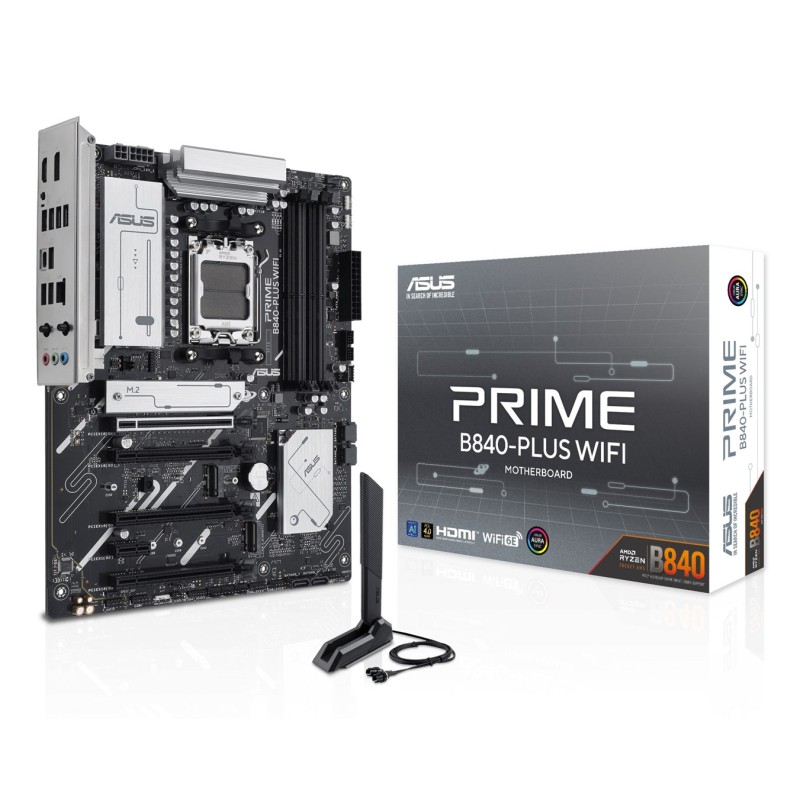

Packaging content

Antenna included: Yes

Screws included: Yes

Cables included: SATA

Storage controllers

RAID support: Yes

Supported storage drive types: HDD & SSD

RAID levels: 10, 5, 1, 0

Number of storage drives supported: 7

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

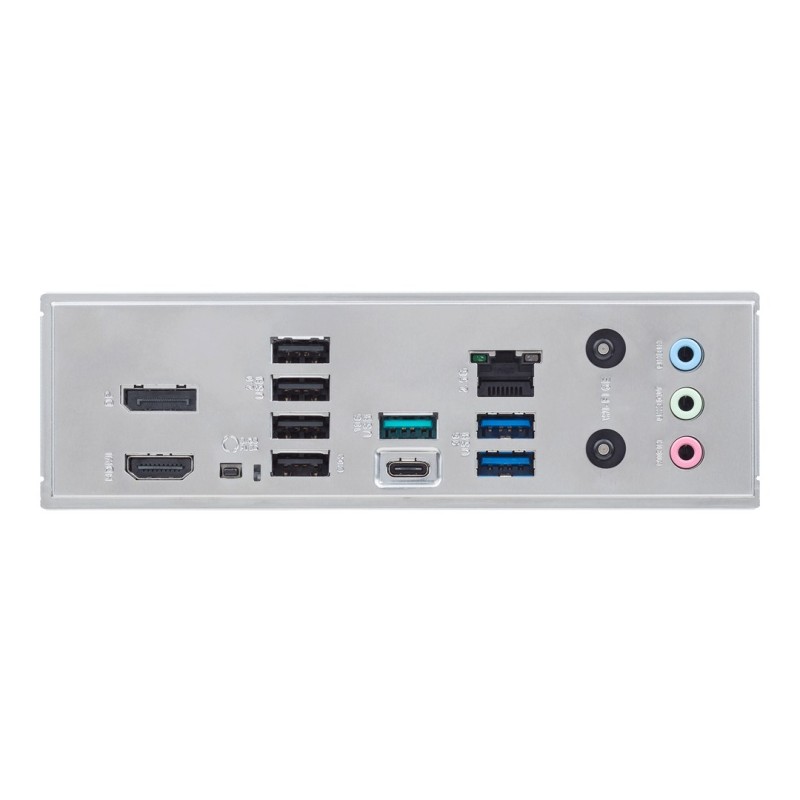

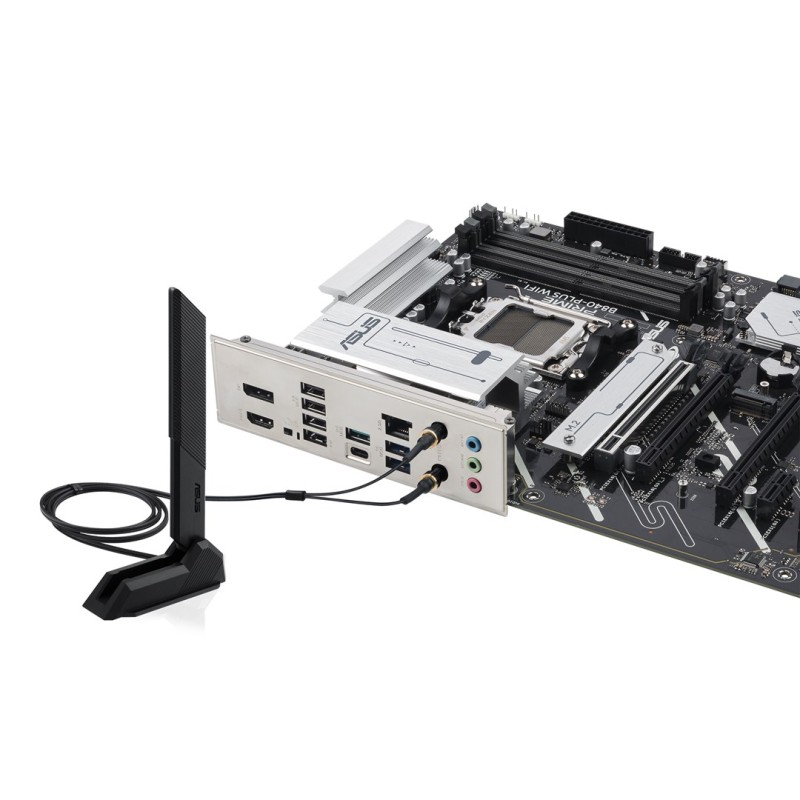

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 1

WiFi-AP antenna jack: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Expansion slots

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 3.0

PCI Express x16 (Gen 3.x) slots: 3

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
