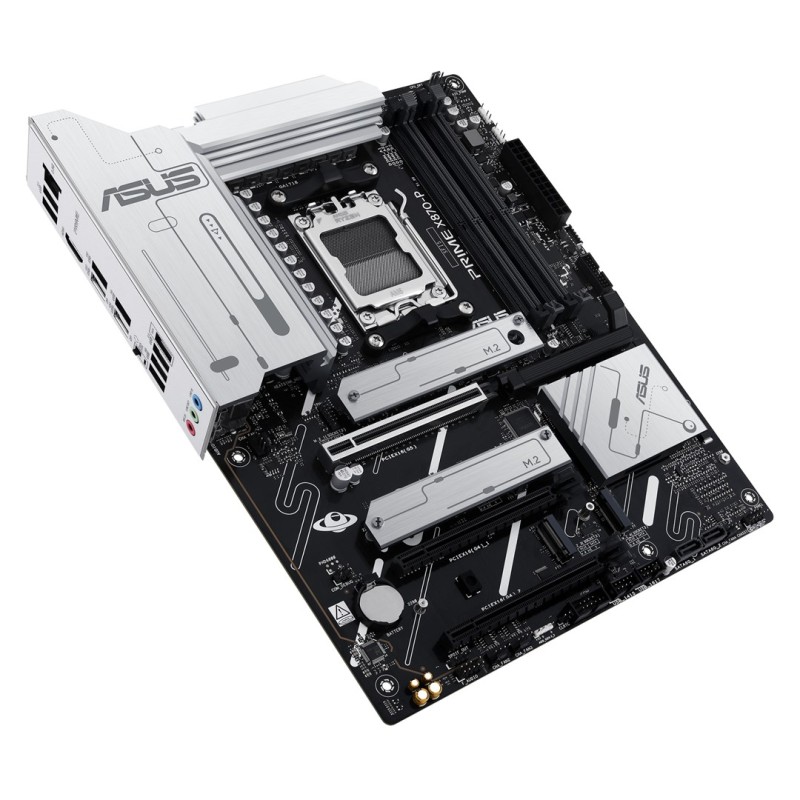

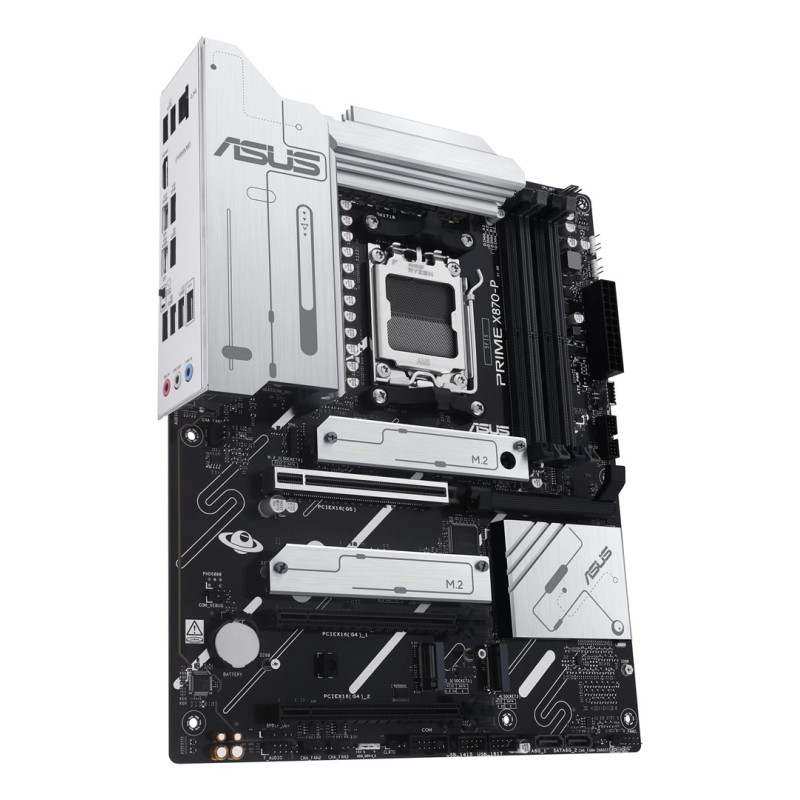

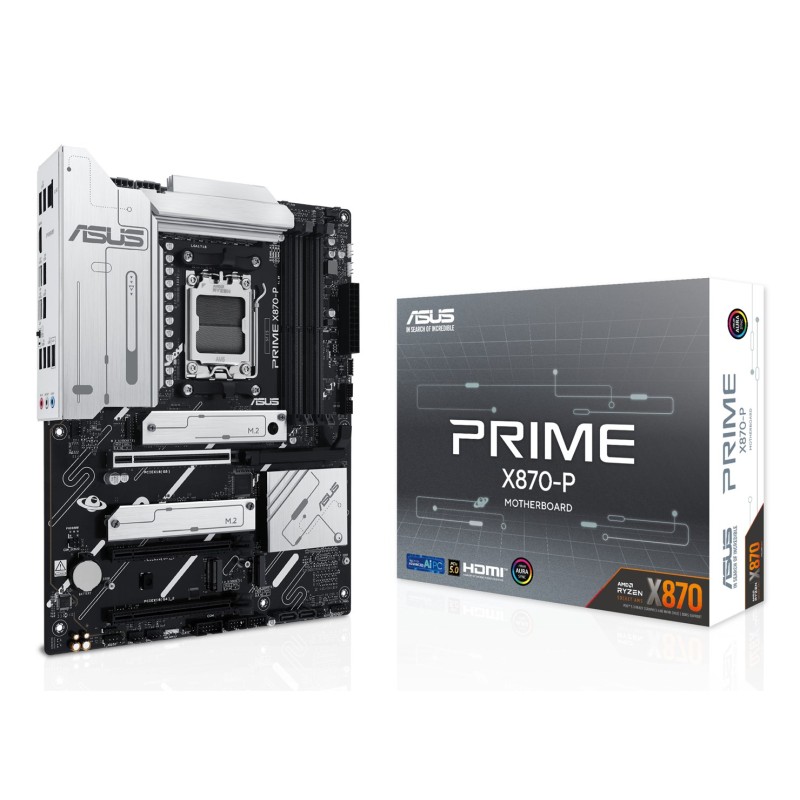

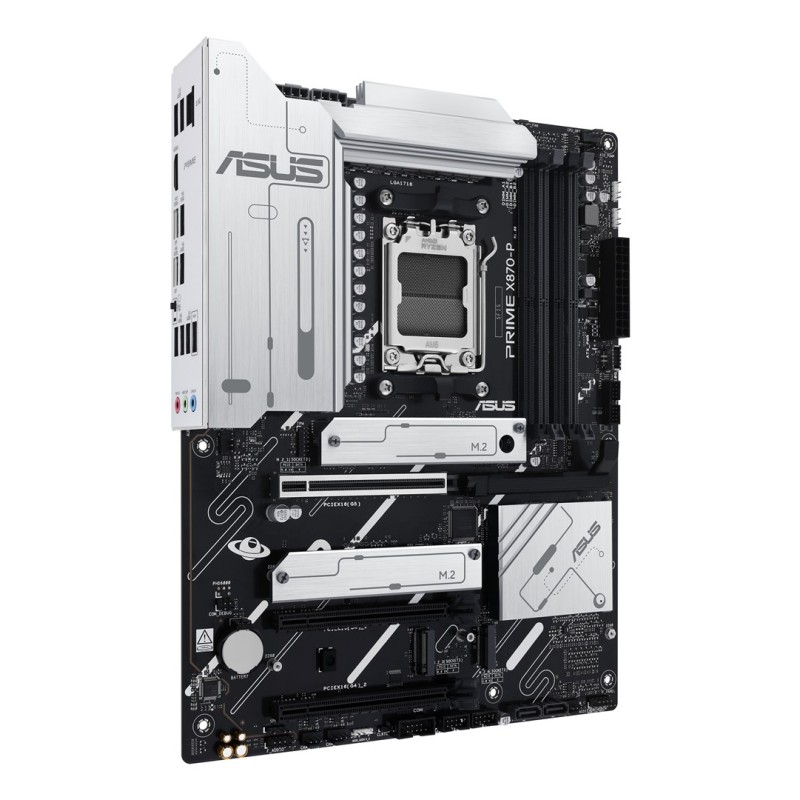

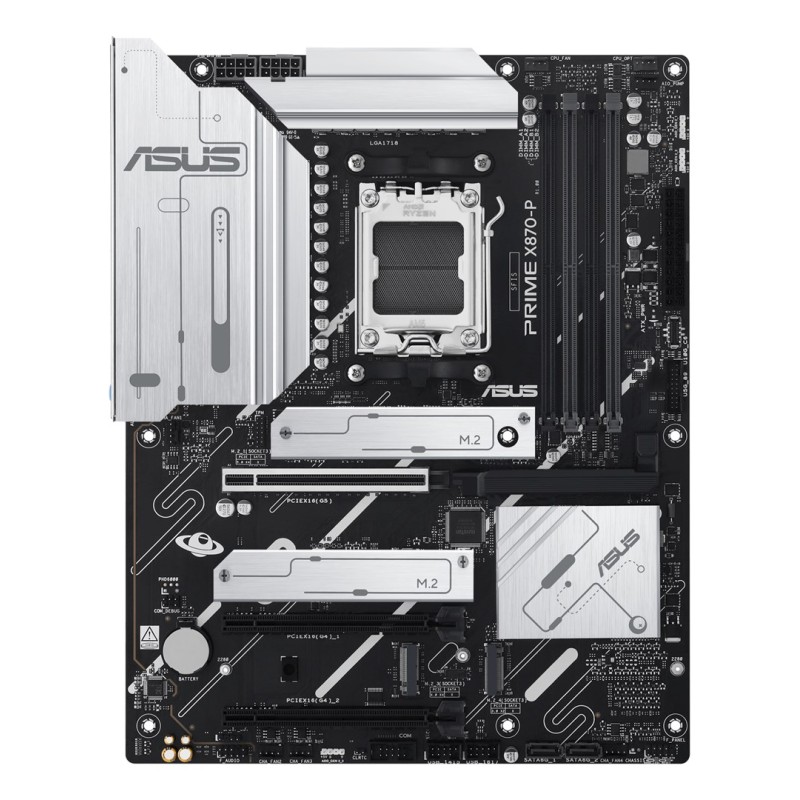

ASUS PRIME X870-P AMD X870 Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor socket: Socket AM5

Processor manufacturer: AMD

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Cooling type: Passive

Windows operating systems supported: Windows 11, Windows 10

Product colour: Black

Motherboard chipset family: AMD

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Motherboard chipset: AMD X870

Power source type: ATX

Memory

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Supported memory clock speed (max): 8000 MHz

Memory channels: Dual-channel

Maximum internal memory: 192 GB

Unbuffered memory: Yes

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Height: 48 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

12V power connector: Yes

Number of COM connectors: 1

TPM connector: Yes

EPS power connector (8-pin): Yes

CPU fan connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of chassis fan connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 2

Front panel audio connector: Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package height: 68 mm

Package width: 353 mm

Package depth: 273 mm

Package weight: 1.5 kg

Packaging content

Cables included: SATA

Storage controllers

Number of storage drives supported: 6

Number of HDDs supported: 2

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 10, 0, 5

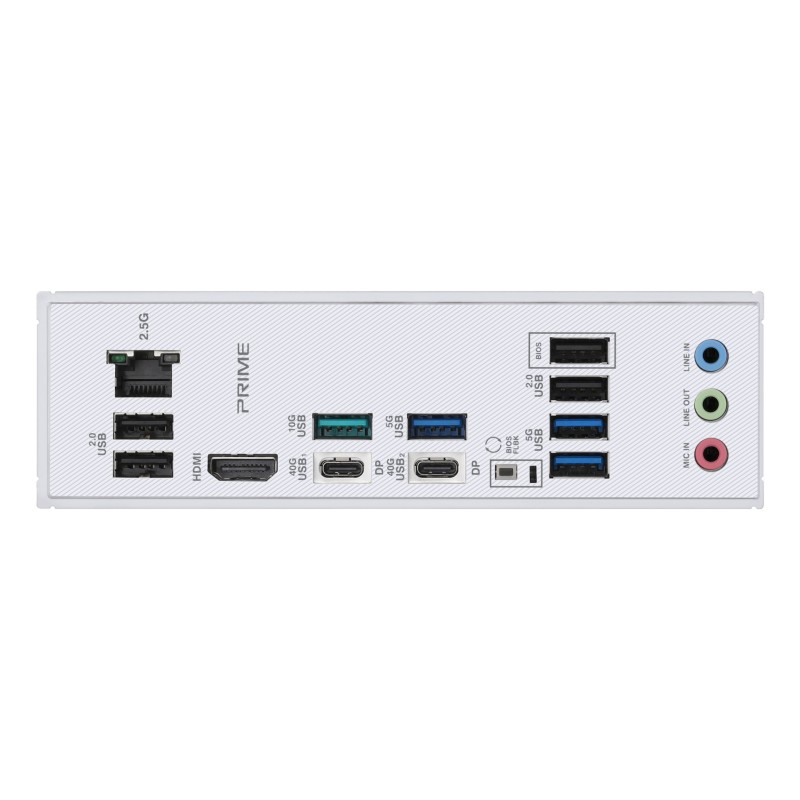

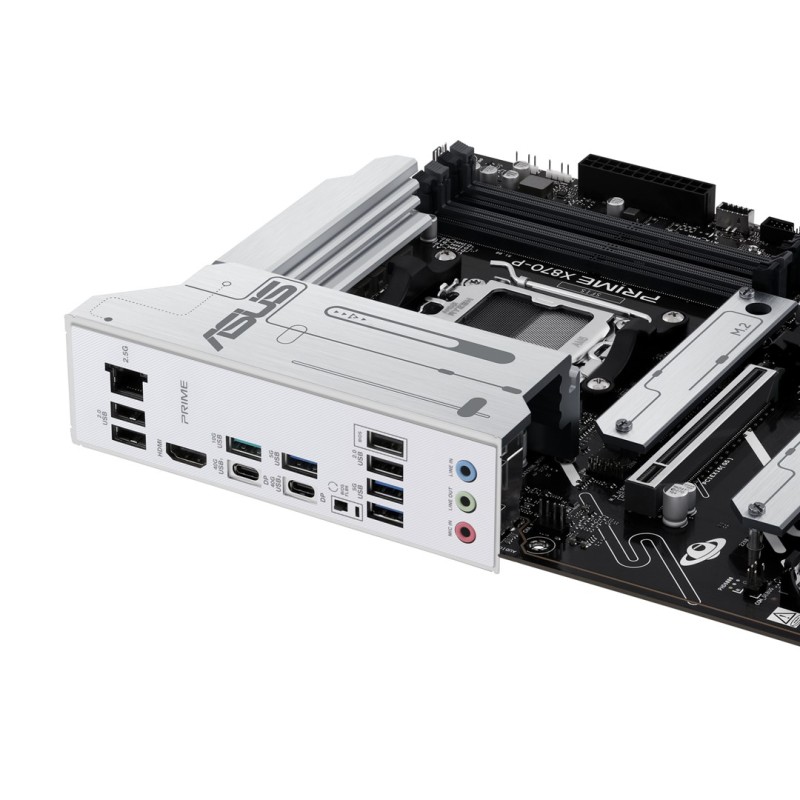

Rear panel I/O ports

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI version: 2.1

Line-in: Yes

USB4 Gen 2x2 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.4a

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 4

Other features

Back-to-BIOS button: Yes

Weight: 1.44 kg

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
