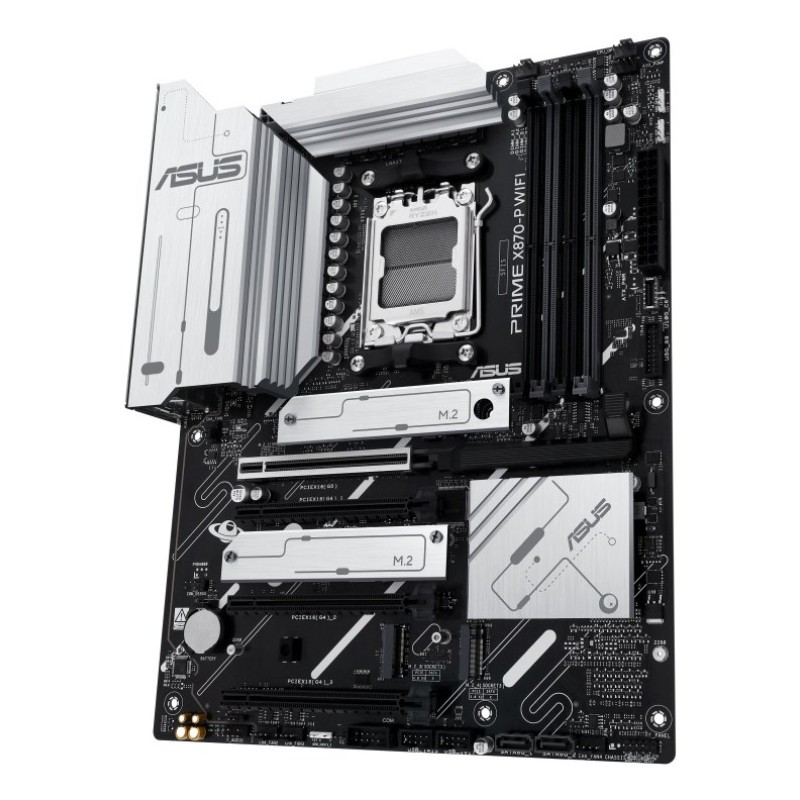

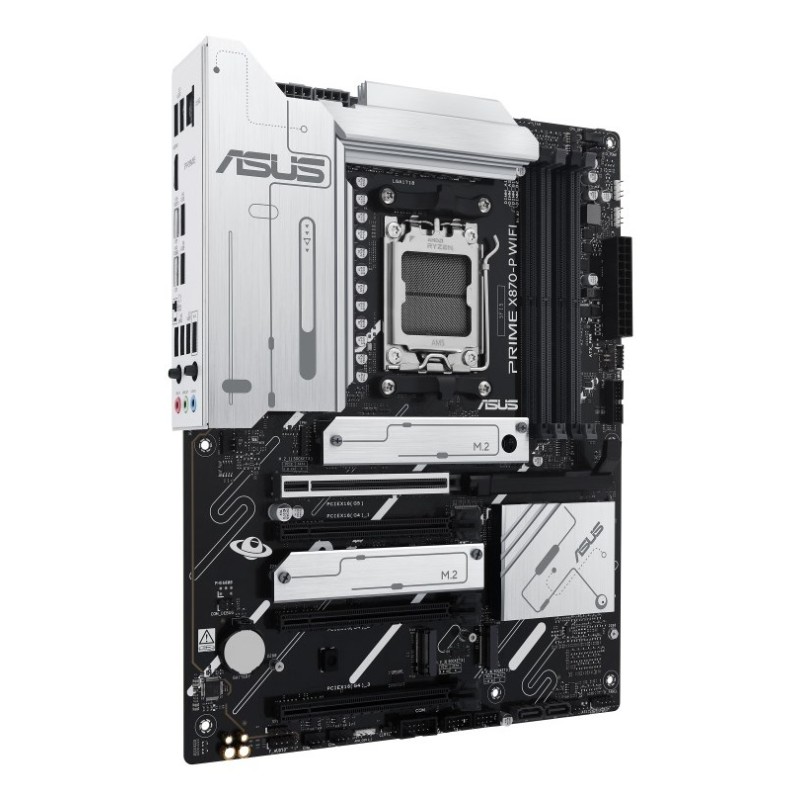

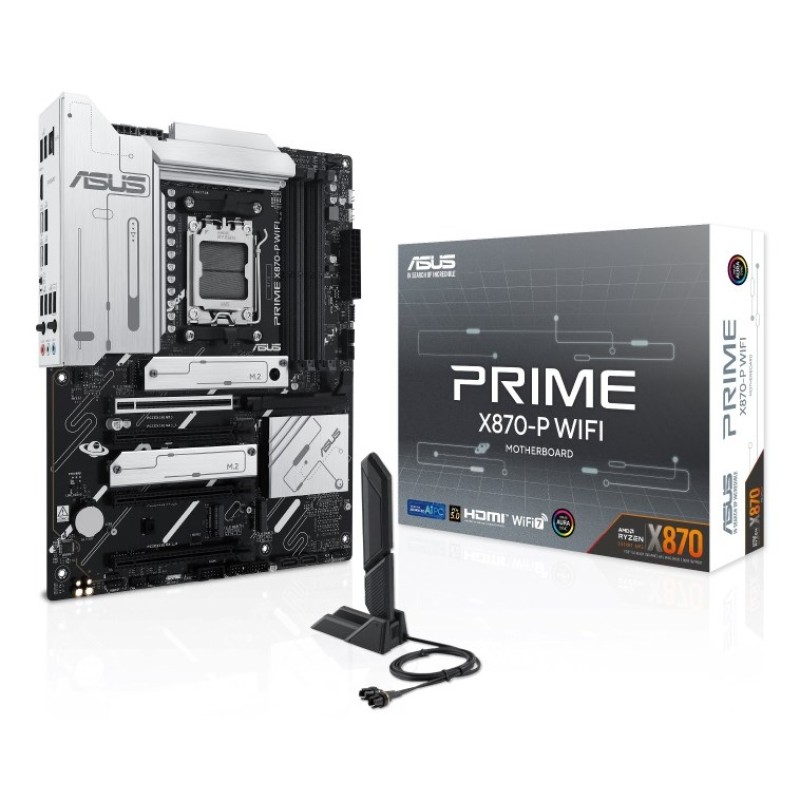

ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Audio output channels: 7.1 channels

Product colour: Black

Windows operating systems supported: Windows 10, Windows 11

Motherboard chipset family: AMD

Motherboard chipset: AMD X870

Power source type: ATX

Cooling type: Passive

Motherboard form factor: ATX

Memory

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 8000 MHz

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 192 GB

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Height: 48 mm

Depth: 244 mm

Width: 305 mm

Network

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Ethernet LAN: Yes

Wi-Fi standards: 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

12V power connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

CPU fan connector: Yes

Number of SATA III connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

TPM connector: Yes

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 4

Number of COM connectors: 1

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.56 kg

Package height: 68 mm

Package depth: 273 mm

Package width: 353 mm

Packaging content

Cables included: SATA

Storage controllers

Number of HDDs supported: 2

Number of storage drives supported: 6

Supported storage drive types: HDD & SSD

RAID levels: 0, 5, 10, 1

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

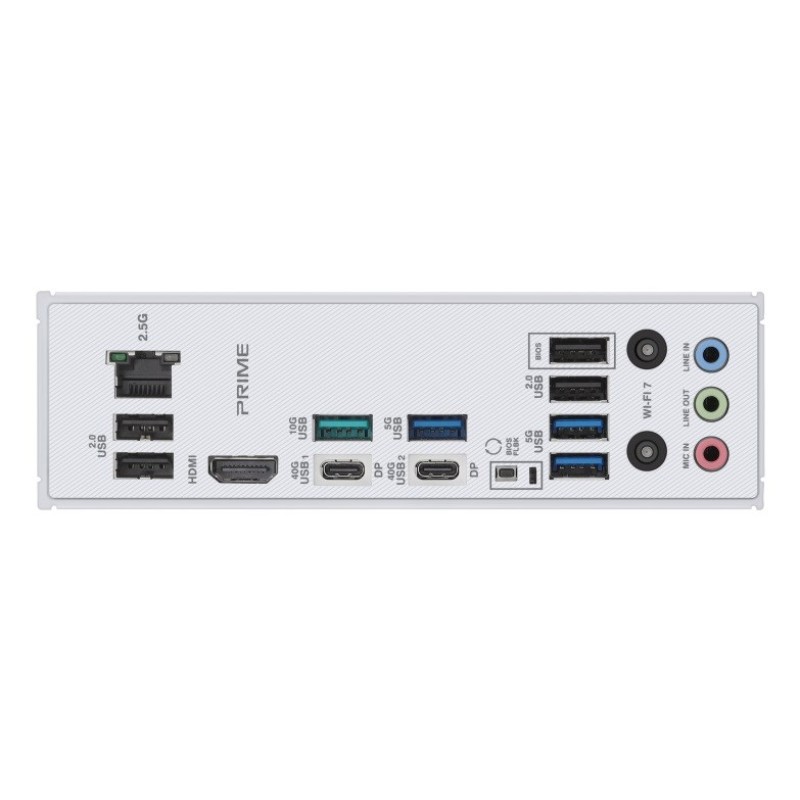

Rear panel I/O ports

Line-in: Yes

USB4 Gen 2x2 ports quantity: 2

Microphone in: Yes

DisplayPort version: 1.4a

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 3

Number of M.2 (M) slots: 4

Other features

Back-to-BIOS button: Yes

Weight: 1.56 kg

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
