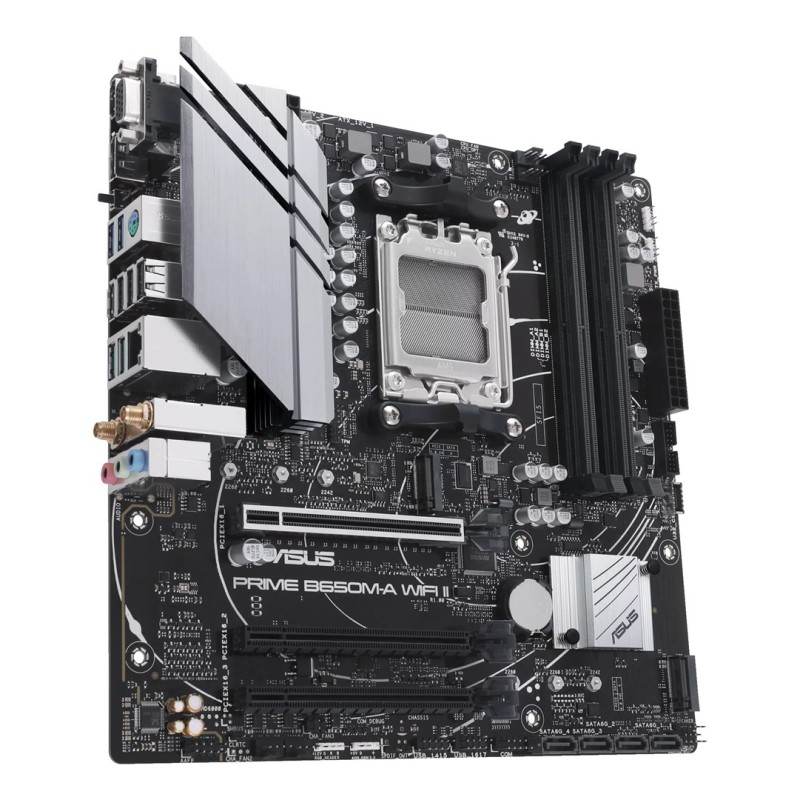

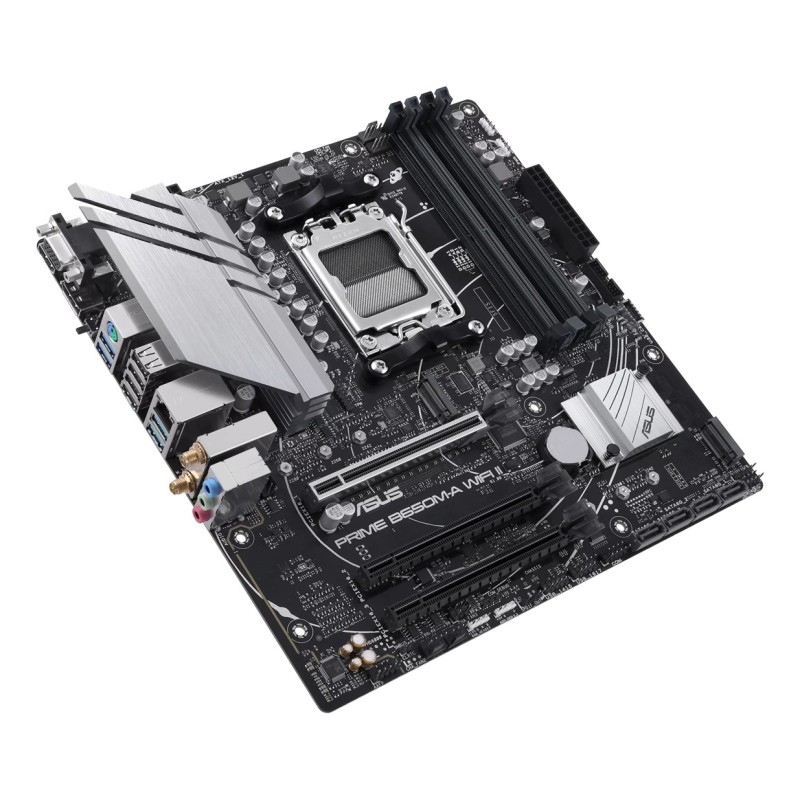

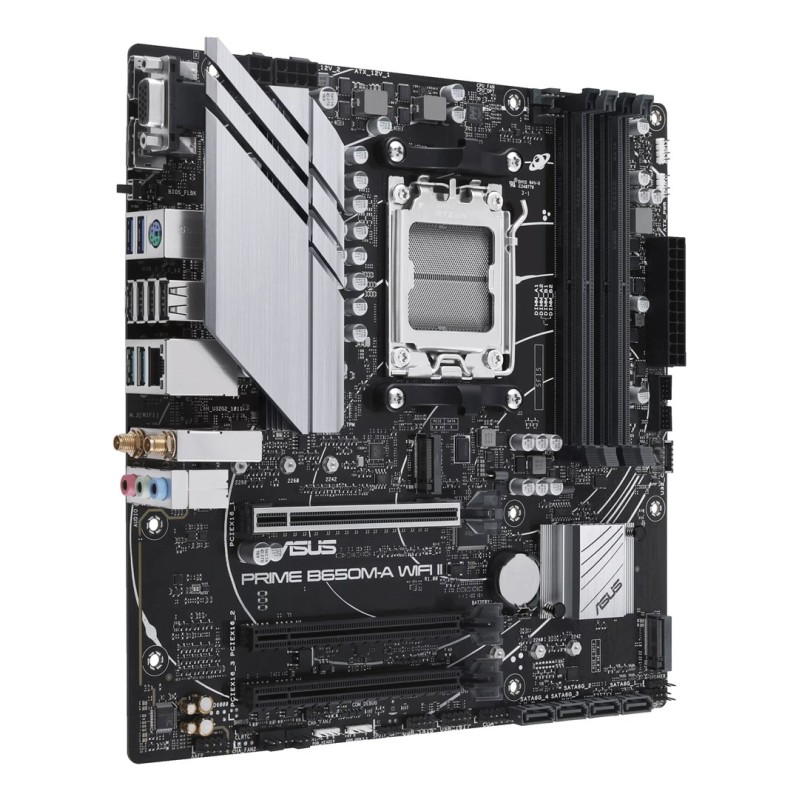

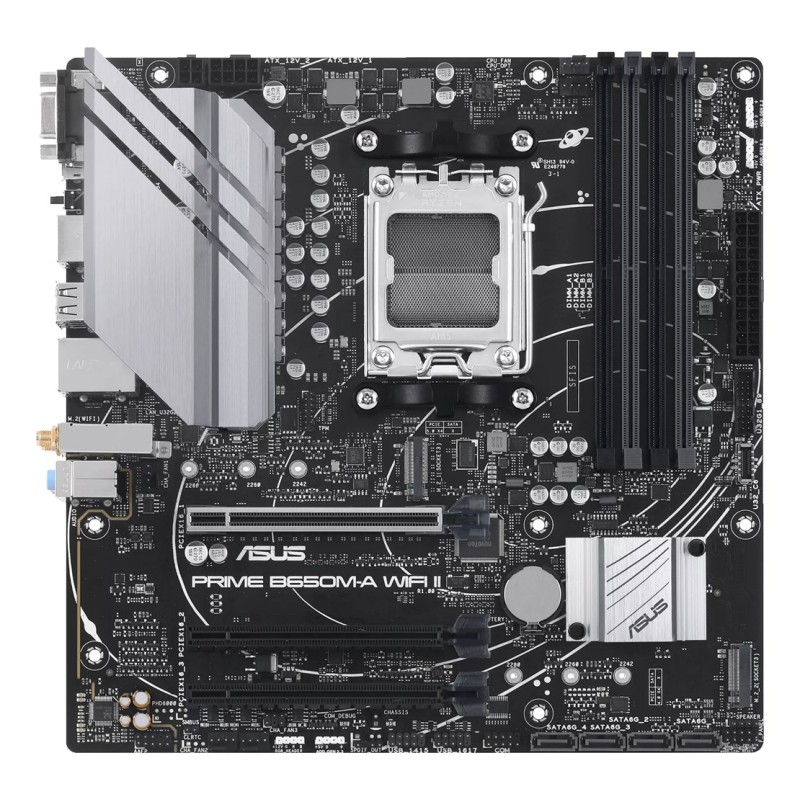

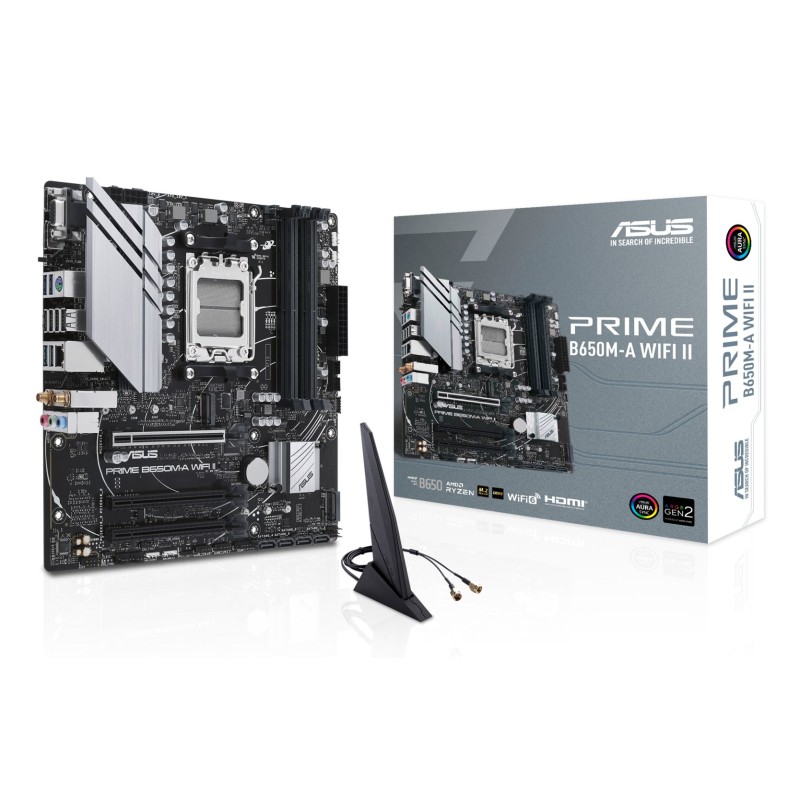

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen™ 7

Features

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11, Windows 10

Motherboard form factor: micro ATX

Motherboard chipset: AMD B650

Motherboard chipset family: AMD

Power source type: ATX

Memory

Unbuffered memory: Yes

Supported memory clock speeds: 5000, 5800, 5400, 6200, 6000, 6400 MHz, 5600, 5200, 4800

Maximum internal memory: 128 GB

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g

Bluetooth version: 5.2

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Internal I/O

Power fan connector: Yes

Front panel connector: Yes

Number of COM connectors: 1

S/PDIF out connector: Yes

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Number of SATA connectors: 4

USB 2.0 connectors: 2

CPU fan connector: Yes

Peripheral (Molex) power connectors (4-pin): 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of chassis fan connectors: 3

12V power connector: Yes

Audio connector: Yes

Total number of SATA connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

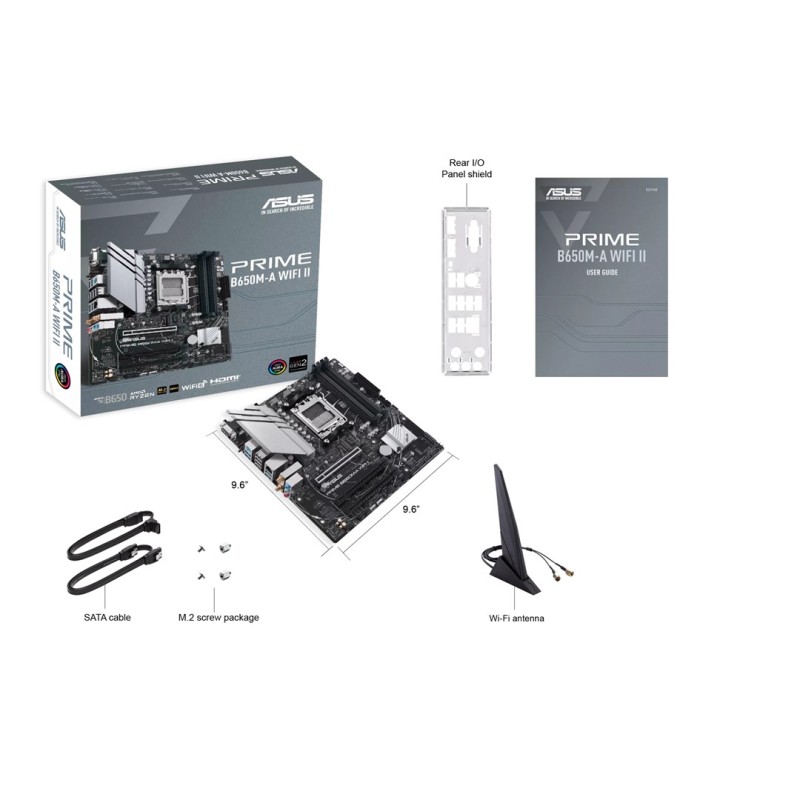

Packaging content

Cables included: SATA

Storage controllers

RAID levels: 10, 1, 0

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA

Number of storage drives supported: 2

Number of HDDs supported: 4

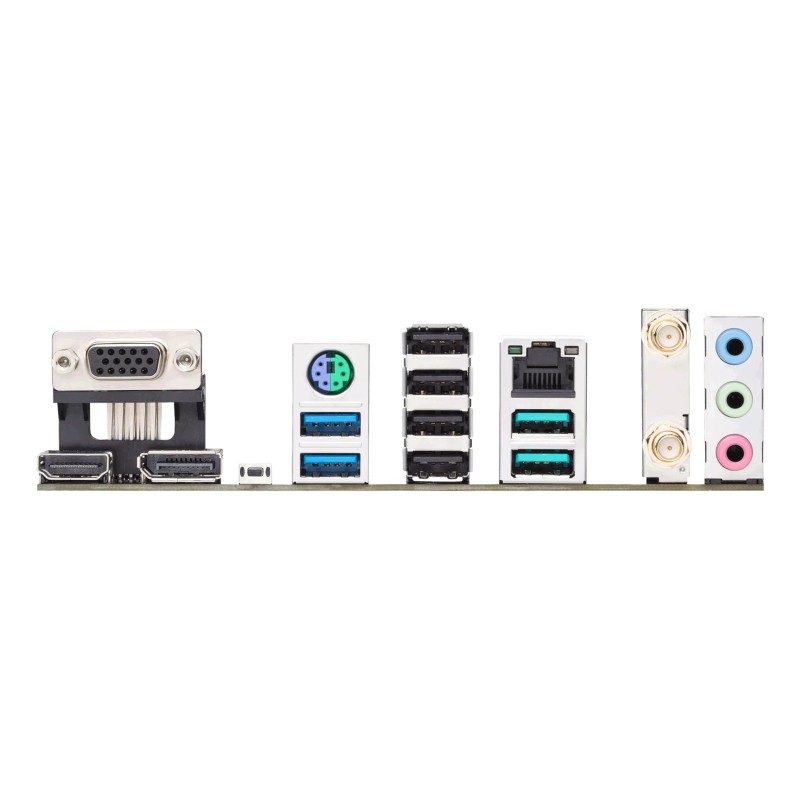

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

USB connector type: USB Type-A

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

VGA (D-Sub) ports quantity: 1

Headphone outputs: 1

Microphone in: Yes

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 3
