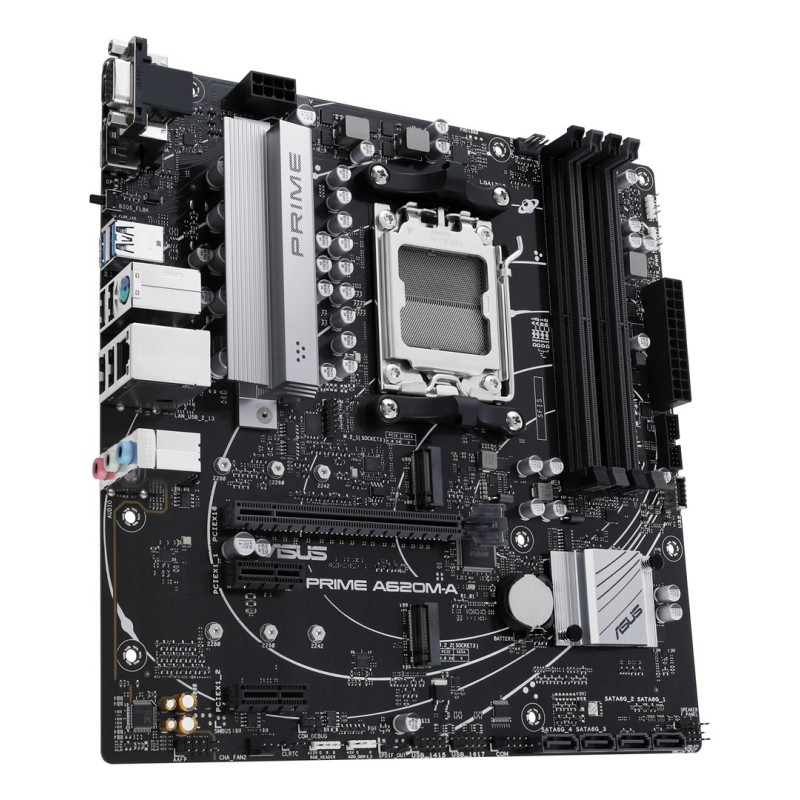

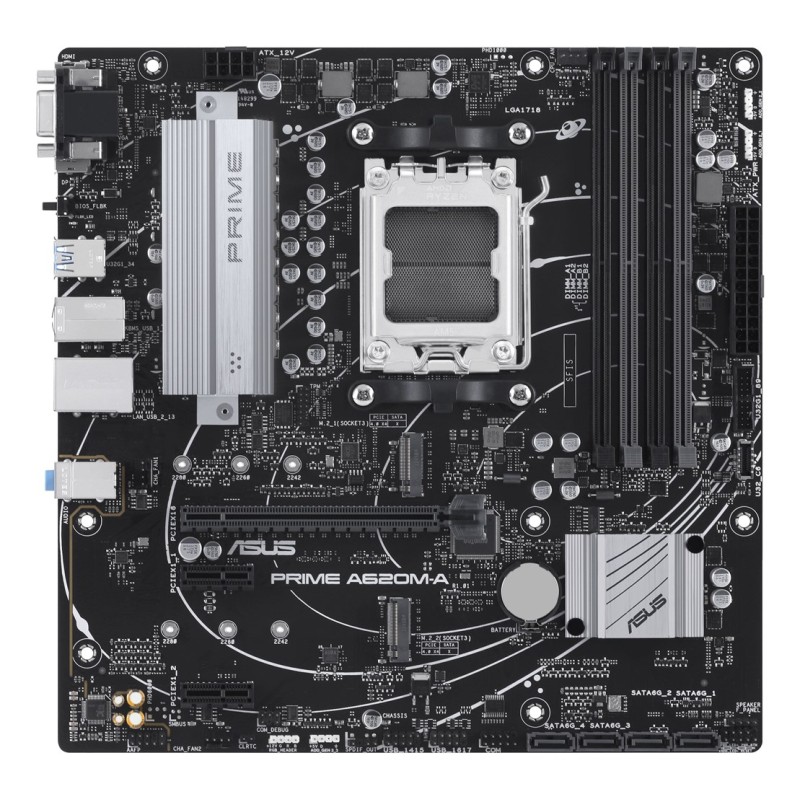

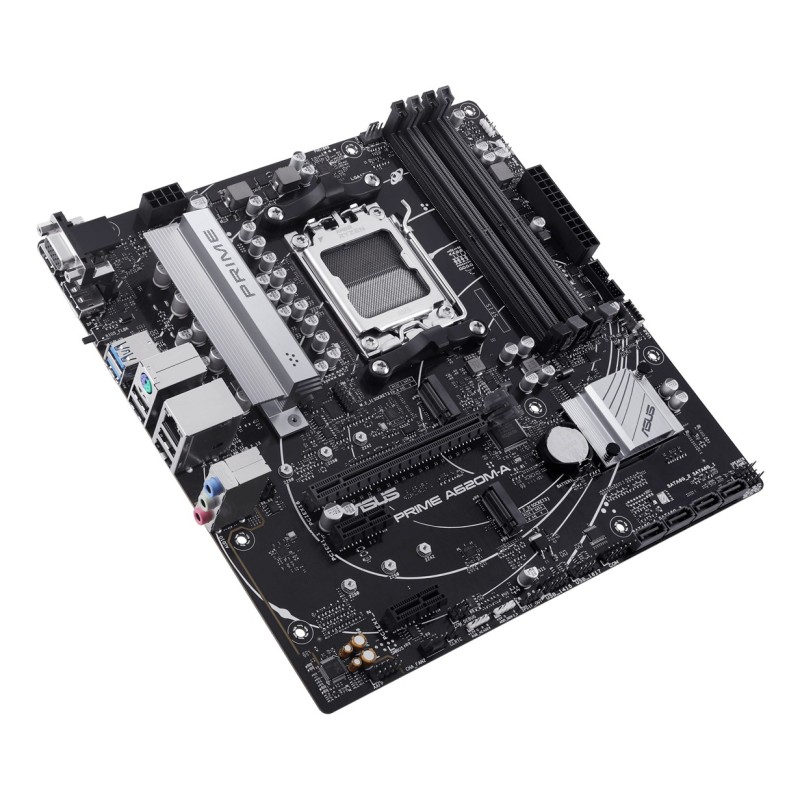

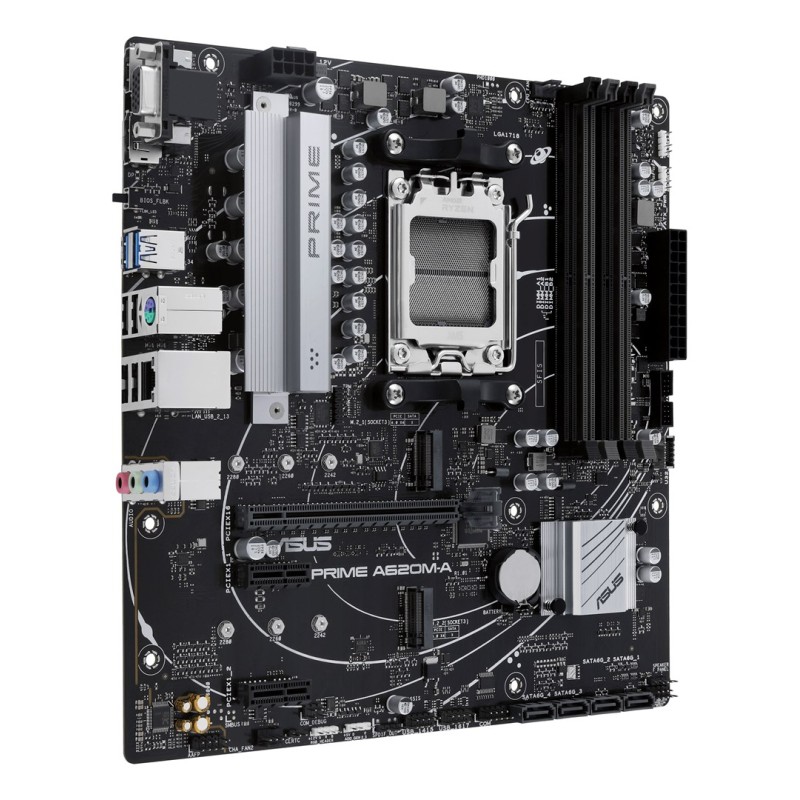

ASUS PRIME A620M-A-CSM AMD A620 Socket AM5 micro ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 10 x64, Windows 11

Motherboard chipset: AMD A620

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Memory

Memory channels: Dual-channel

Unbuffered memory: Yes

Supported memory clock speeds: 5600, 5000, 6200, 5200, 6000, 6400 MHz, 5800, 5400, 4800

Maximum internal memory: 128 GB

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 6400 MHz

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Weight & dimensions

Height: 43 mm

Depth: 244 mm

Width: 244 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

Front panel audio connector: Yes

CPU fan connector: Yes

S/PDIF out connector: Yes

Number of COM connectors: 1

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

TPM connector: Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 2

Number of chassis fan connectors: 2

12V power connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package width: 275 mm

Package weight: 1.36 kg

Package depth: 275 mm

Package height: 67.5 mm

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10

RAID support: Yes

Number of storage drives supported: 6

Number of HDDs supported: 4

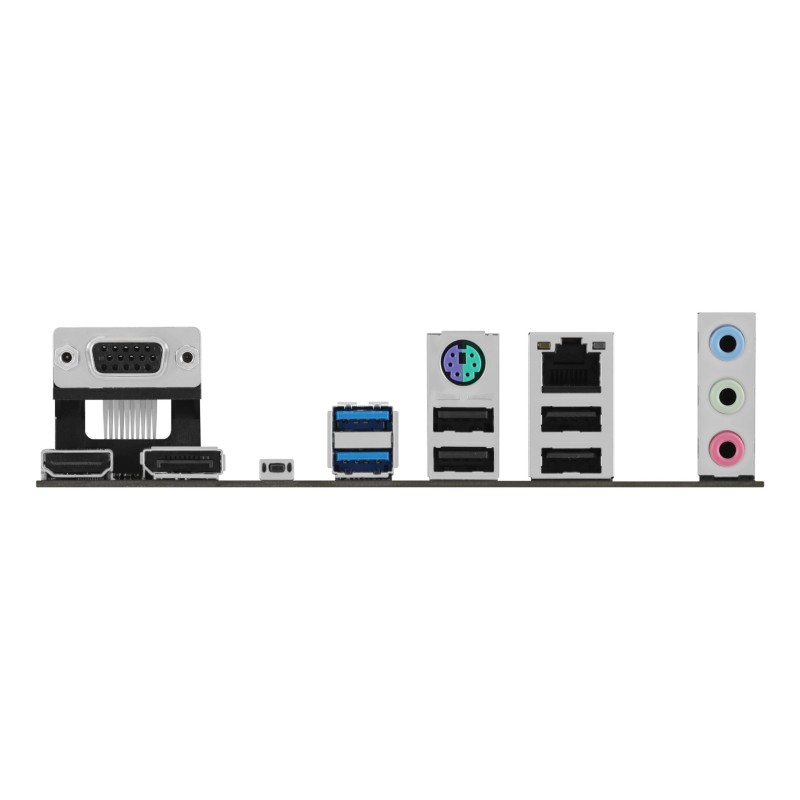

Rear panel I/O ports

DisplayPorts quantity: 1

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

Headphone outputs: 1

Microphone in: Yes

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 1

Line-in: Yes

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1
