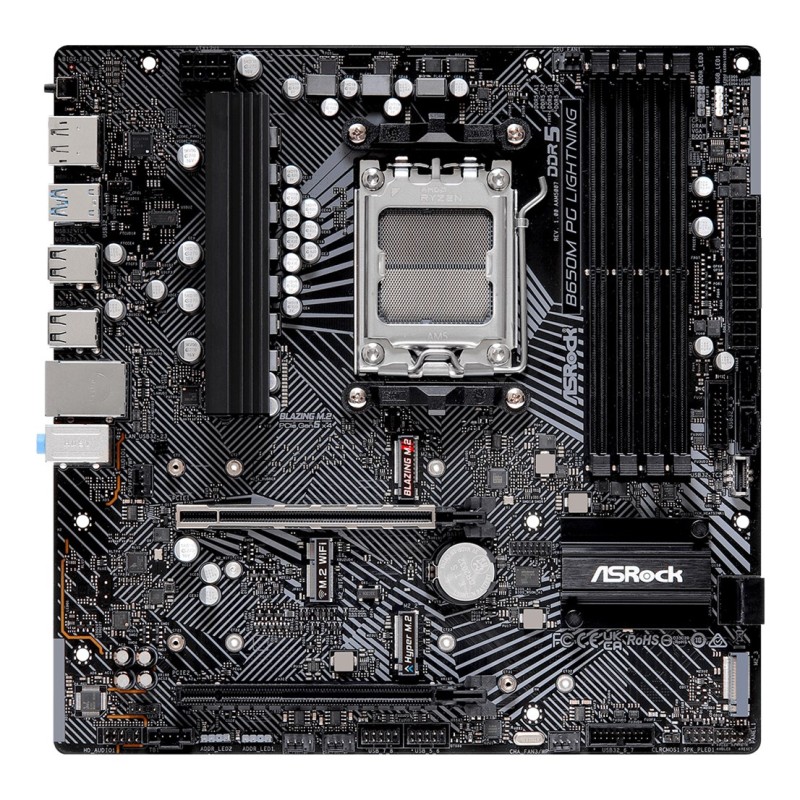

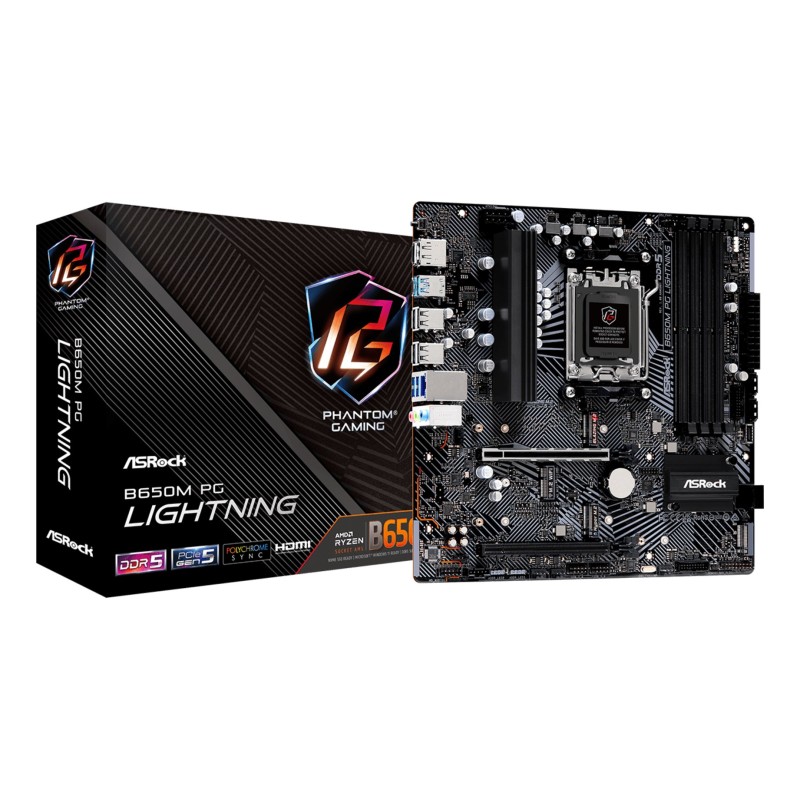

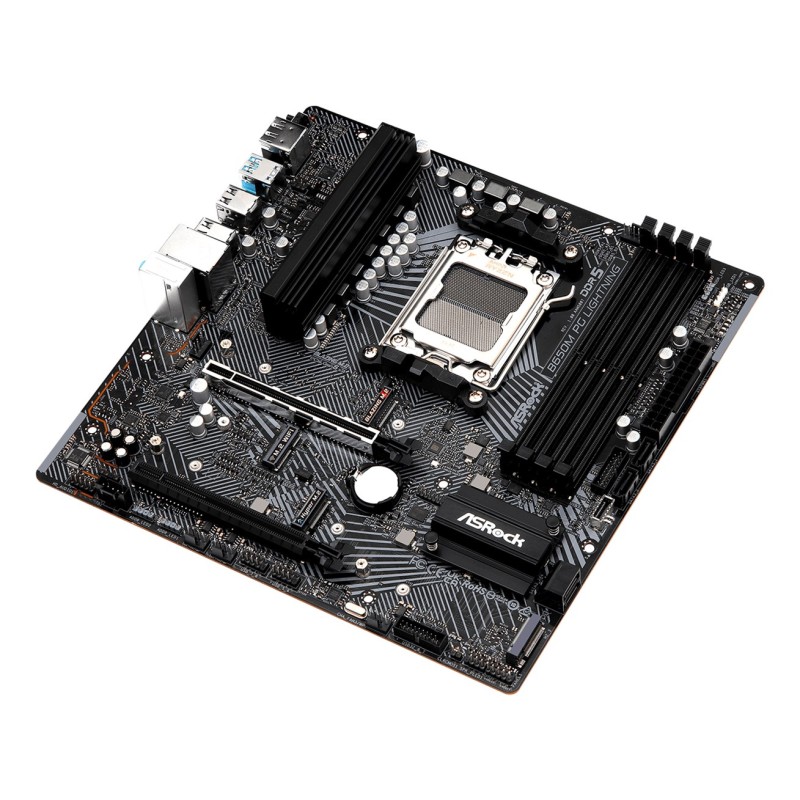

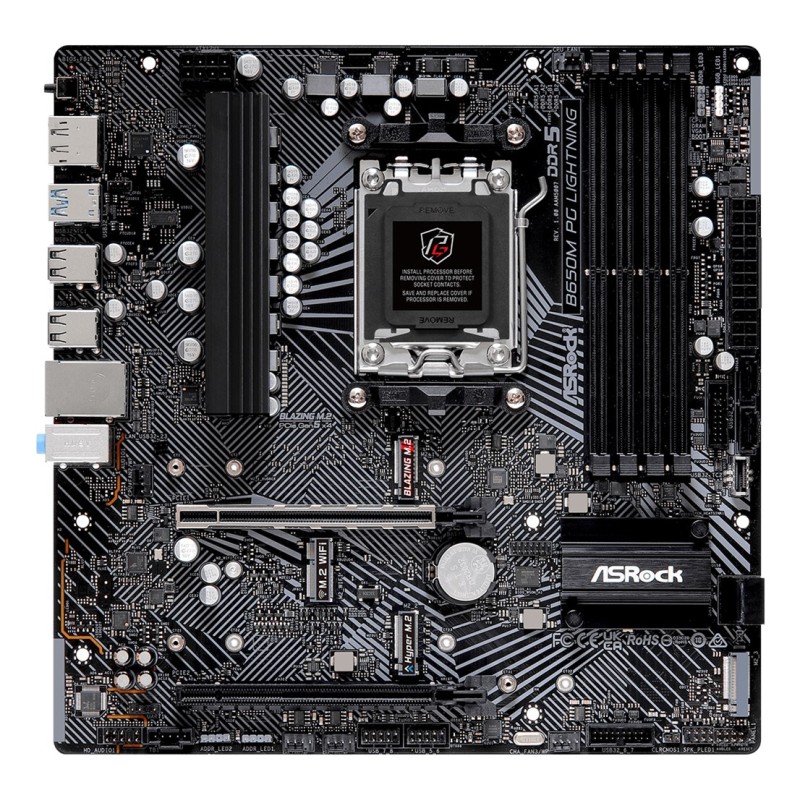

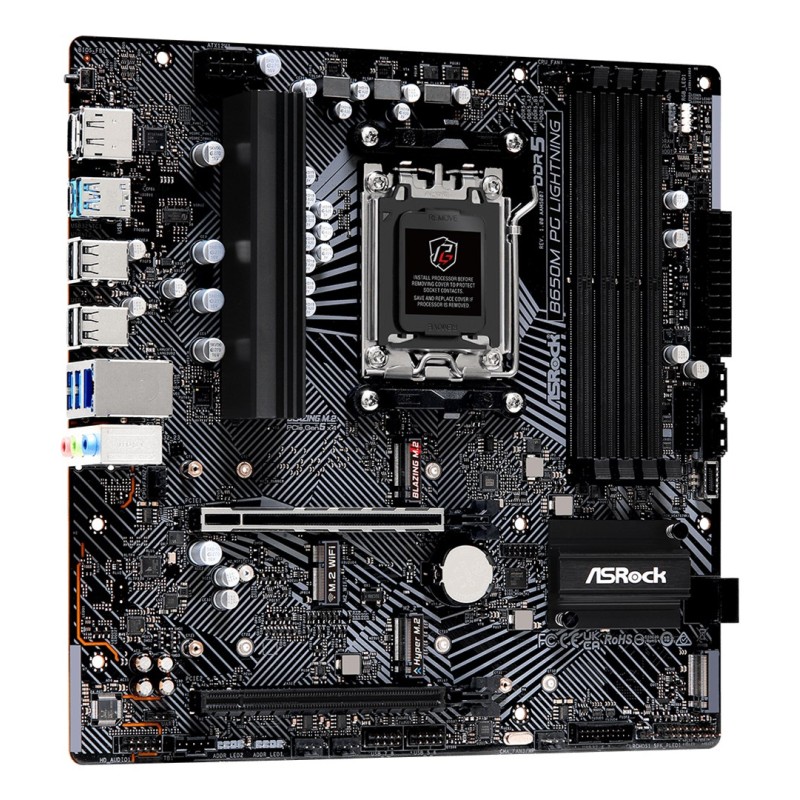

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series

Supported processor sockets: Socket AM5

Graphics

Maximum resolution: 3840 x 2160 pixels

HDCP: Yes

Parallel processing technology support: CrossFire

Features

Motherboard chipset: AMD B650

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard form factor: micro ATX

Product colour: Black

Motherboard chipset family: AMD

Memory

ECC сompatibility: ECC & Non-ECC

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 7200 MHz

Supported memory clock speeds: 6600, 5600, 7200, 6800, 4400, 5200, 4800, 6000, 6400, 6200, 7000

Maximum internal memory: 192 GB

Unbuffered memory: Yes

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

LAN controller: Dragon RTL8125BG

Internal I/O

12V power connector: Yes

RGB LED pin header: Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Number of chassis fan connectors: 3

Number of SATA III connectors: 4

Thunderbolt headers: 1

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

CPU fan connector: Yes

Chassis intrusion connector: Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Screws included: Yes

Cables included: SATA

Storage controllers

Number of storage drives supported: 7

Supported storage drive types: HDD & SSD

RAID levels: 10, 1, 0

Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III

RAID support: Yes

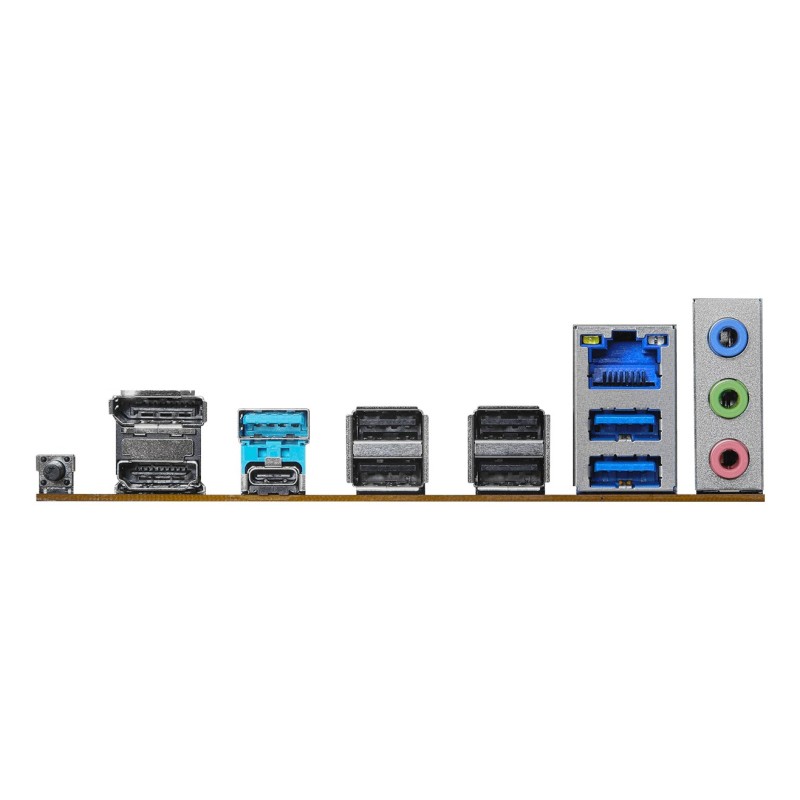

Rear panel I/O ports

Headphone outputs: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI version: 2.1

Ethernet LAN (RJ-45) ports: 1

USB connector type: USB Type-A, USB Type-C

DisplayPorts quantity: 1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 1
