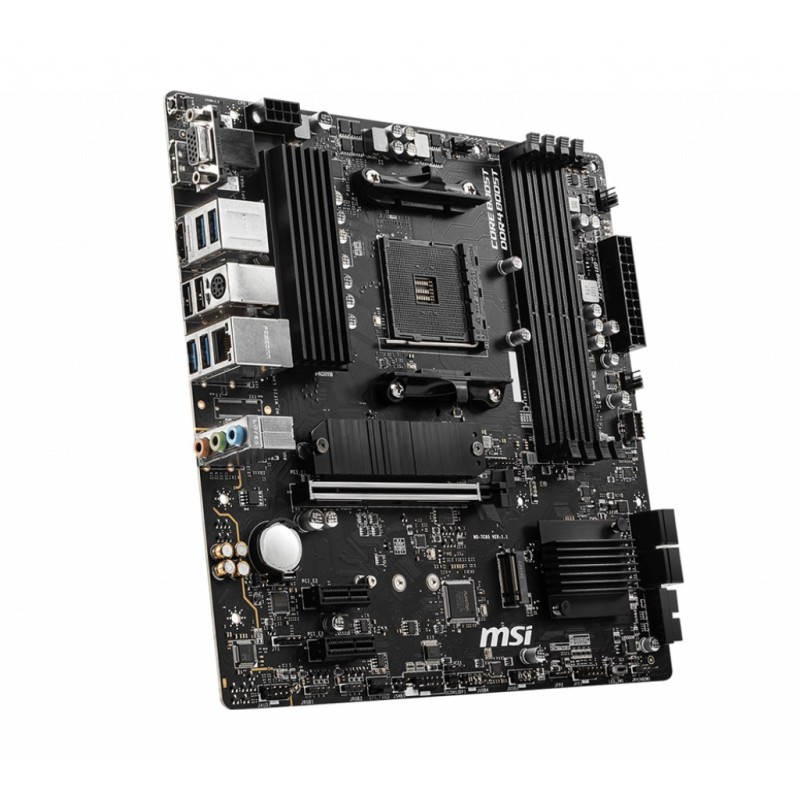

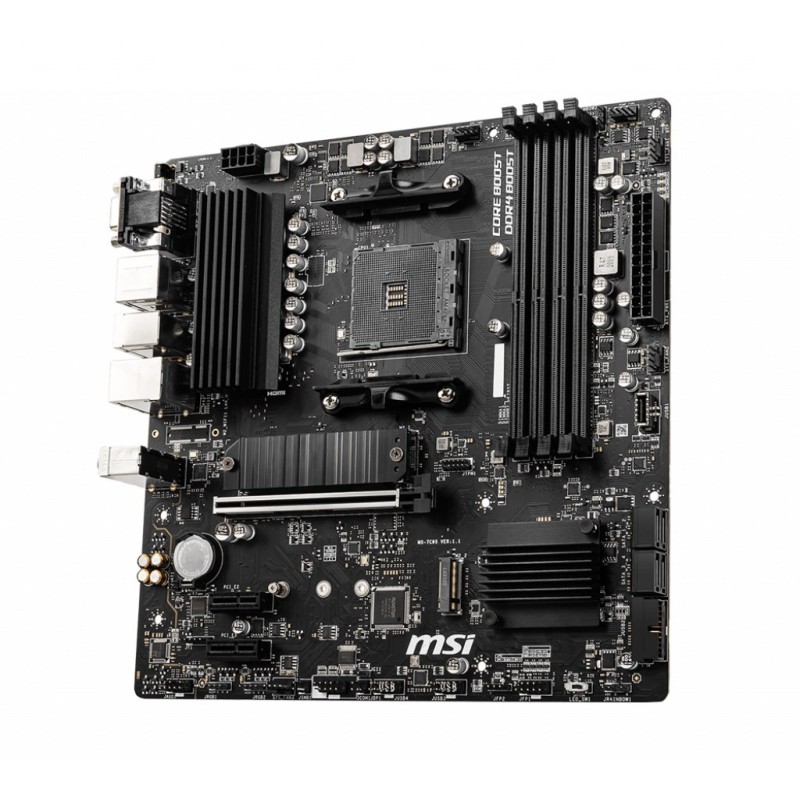

MSI B550M PRO-VDH AMD B550 Socket AM4 micro ATX

Περιγραφή

Processor

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 7

Processor socket: Socket AM4

Maximum number of SMP processors: 1

Graphics

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

Features

Motherboard form factor: micro ATX

Motherboard chipset: AMD B550

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Memory

Supported memory clock speeds: 2133, 1866, 3000, 2400, 2800, 2667, 3733, 4400, 3066, 3466, 3866, 3200 MHz, 4266, 2933, 3600, 4133, 4000 MHz

Memory slots type: DIMM

Maximum internal memory: 128 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory types: DDR4-SDRAM

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek 8111HN

Wi-Fi: No

Ethernet LAN: Yes

Internal I/O

Serial port headers: 1

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

CPU fan connector: Yes

USB 2.0 connectors: 2

12V power connector: Yes

TPM connector: Yes

Front panel connector: Yes

Chassis intrusion connector: Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 3

RGB LED pin header: Yes

Front panel audio connector: Yes

BIOS

Clear CMOS jumper: Yes

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

RAID levels: 0, 1, 10

Supported storage drive interfaces: Serial ATA III

Supported storage drive types: HDD & SSD

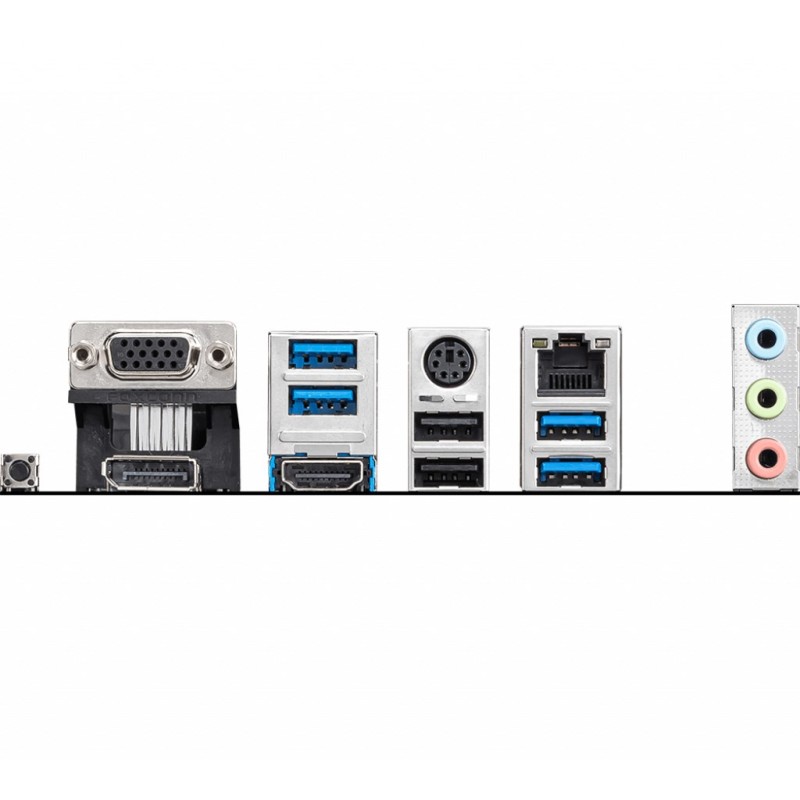

Rear panel I/O ports

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

HDMI version: 2.1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2
