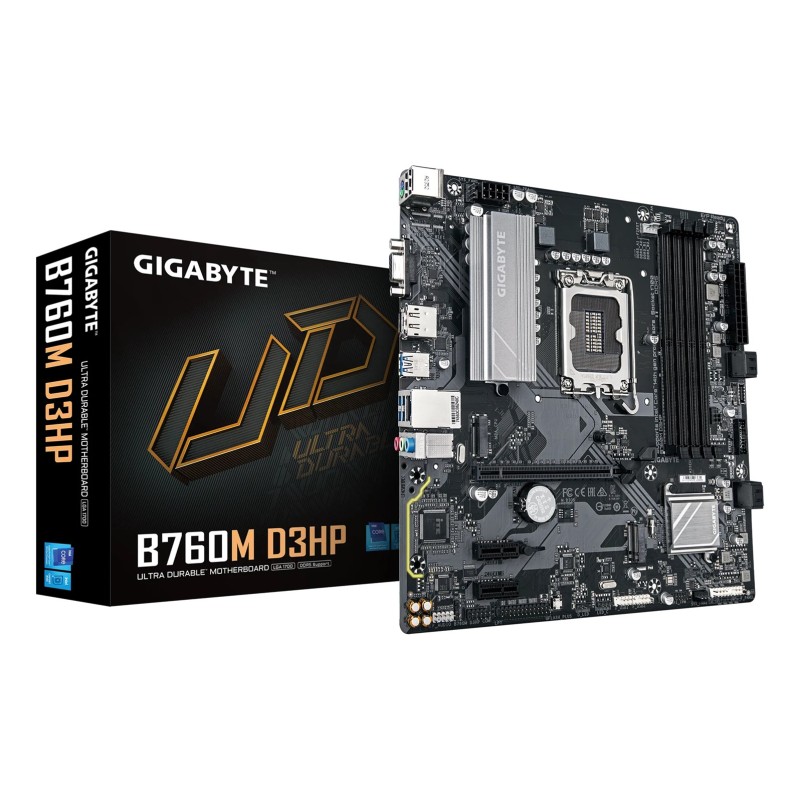

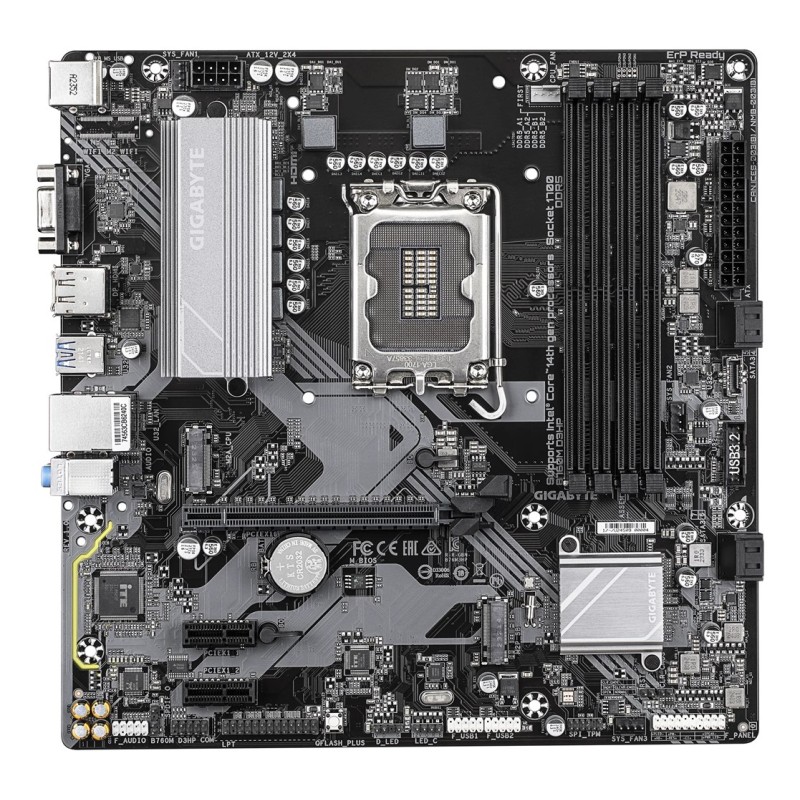

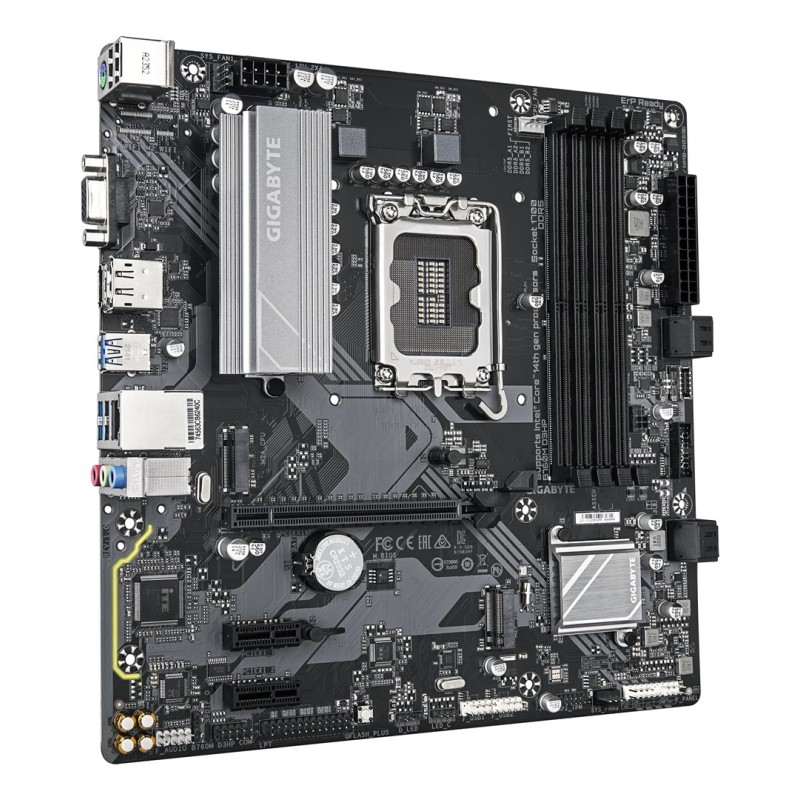

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 14th Gen, Intel Core i3 13th Gen, Intel Core i9 14th Gen

Processor manufacturer: Intel

Supported processor sockets: LGA 1700

Processor socket: LGA 1700

Graphics

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

Parallel processing technology support: Not supported

DirectX version: 12.0

Features

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

PC health monitoring: Fan, Water cooling, Voltage, Temperature

Motherboard chipset: Intel B760 Express

Windows operating systems supported: Windows 11, Windows 10

Power source type: ATX

Product colour: Bronze

Memory

Supported memory clock speeds: 4800, 5200, 5600 MHz, 4400

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Number of memory slots: 4

Maximum internal memory per slot: 64 GB

Maximum internal memory: 256 GB

ECC сompatibility: ECC & Non-ECC

Unbuffered memory: Yes

Supported memory clock speed (max): 5600 MHz

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Height: 35 mm

Network

LAN controller: Realtek RTL8111H

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 4

Parallel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of CPU fan connectors: 1

12V power connector: Yes

Front panel audio connector: Yes

Front panel connector: Yes

S/PDIF out connector: Yes

EPS power connector (8-pin): Yes

TPM connector: Yes

Serial port headers: 1

Number of RGB LED pin headers: 2

CPU fan connector: Yes

Number of chassis fan connectors: 3

ATX Power connector (24-pin): Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

Number of EPS power connectors (8-pin): 1

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Packaging data

Package depth: 268 mm

Package width: 270 mm

Package height: 68 mm

Package weight: 1.21 kg

Packaging content

Batteries included: Yes

Screws included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 1, 0, 10, 5

Number of storage drives supported: 6

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

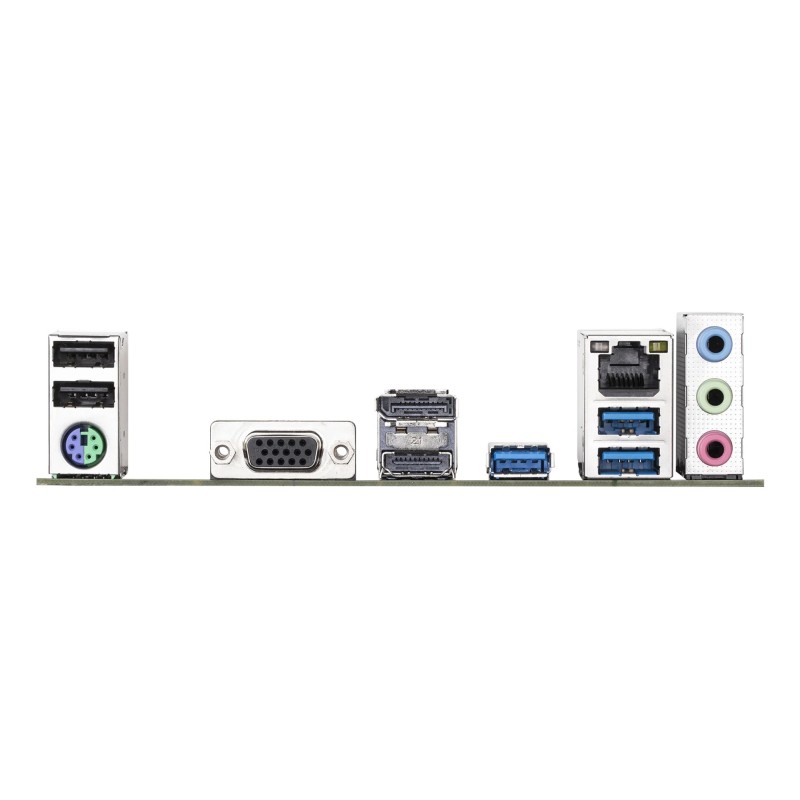

Rear panel I/O ports

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

USB 2.0 ports quantity: 2

Line-in: Yes

HDMI version: 2.1

Headphone outputs: 1

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DisplayPort version: 1.2

PS/2 ports quantity: 1

HDMI ports quantity: 1

Expansion slots

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 2

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

Battery

Number of battery cells: 1

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Other features

Weight: 720 g

Logistics data

Products per shipping (inner) case: 1 pc(s)
