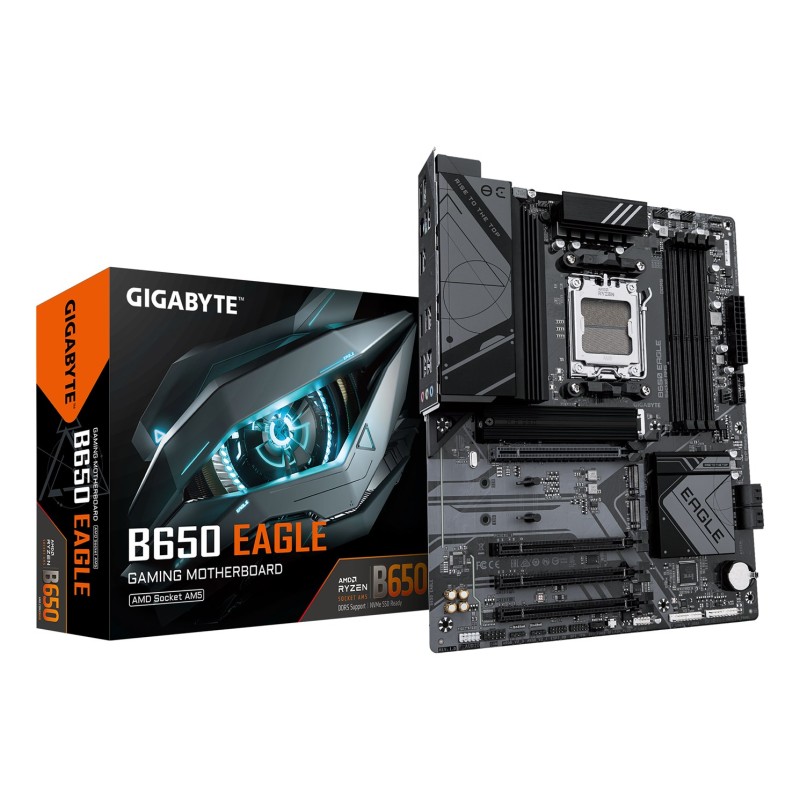

GIGABYTE B650 EAGLE Motherboard - Supports AMD Ryzen 9000 CPUs, 12+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

DirectX version: 12.0

Parallel processing technology support: Not supported

Features

Audio output channels: 7.1 channels

Motherboard chipset: AMD B650

Power source type: ATX

PC health monitoring: Voltage, Temperature, Water cooling, Fan

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: ATX

Product colour: Bronze

Audio chip: Realtek ALC897

Motherboard chipset family: AMD

Memory

Memory channels: Dual-channel

Maximum internal memory: 256 GB

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of memory slots: 4

Memory slots type: DIMM

Supported memory clock speed (max): 7600 MHz

Supported memory clock speeds: 6600, 6200, 5600, 7200, 7000, 7600, 6400, 6800, 4800, 5200, 4400, 6000

ECC сompatibility: Non-ECC

Maximum internal memory per slot: 64 GB

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Height: 35 mm

Network

Ethernet interface type: Gigabit Ethernet

Wi-Fi: No

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

USB 2.0 connectors: 3

ATX Power connector (24-pin): Yes

Serial port headers: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 3

12V power connector: Yes

Front panel audio connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

CPU fan connector: Yes

Front panel connector: Yes

Number of water pump connectors: 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 4

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package weight: 1.82 kg

Package width: 335 mm

Package height: 80 mm

Package depth: 270 mm

Packaging content

Batteries included: Yes

Screws included: Yes

Storage controllers

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 10, 0

Number of storage drives supported: 7

Number of HDDs supported: 4

Rear panel I/O ports

Microphone in: Yes

DisplayPorts quantity: 1

DisplayPort version: 1.4

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Line-in: Yes

USB 2.0 ports quantity: 6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 3.x) slots: 3

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

2nd M.2 largest key size: 22110

3rd M.2 largest key size: 22110

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock A620AI WIFI motherboard

ProcessorProcessor manufacturer: AMDCompatible processor series: AMD Ryzen™ 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 SeriesProcessor socket:..

152,12€

Χωρίς ΦΠΑ:122,68€

Asrock B650I LIGHTNING WIFI motherboard

ProcessorMaximum number of SMP processors: 1Compatible processor series: AMD Ryzen™ 7000 SeriesProcessor socket: Socket AM5Processor manufacturer: AMD..

166,85€

Χωρίς ΦΠΑ:134,55€

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

ProcessorSupported processor sockets: Socket AM5Compatible processor series: AMD Ryzen 7000 SeriesProcessor manufacturer: AMDProcessor socket: Socket ..

115,42€

Χωρίς ΦΠΑ:93,08€

Asrock B650M Pro RS AMD B650 Socket AM5 micro ATX

ProcessorCompatible processor series: AMD Ryzen™ 5, AMD Ryzen™ 7Processor manufacturer: AMDProcessor socket: Socket AM5FeaturesAudio chip: Realtek ALC..

139,26€

Χωρίς ΦΠΑ:112,31€

Asrock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX

ProcessorProcessor socket: Socket AM5Processor manufacturer: AMDCompatible processor series: AMD Ryzen™ 7FeaturesMotherboard chipset: AMD B650Audio ou..

109,80€

Χωρίς ΦΠΑ:88,54€

Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX

ProcessorProcessor socket: Socket AM5Processor manufacturer: AMDSupported processor sockets: Socket AM5Compatible processor series: AMD Ryzen 7000 Ser..

208,25€

Χωρίς ΦΠΑ:167,94€

Asrock B850 Pro-A AMD B850 Socket AM5 ATX

ProcessorProcessor socket: Socket AM5Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 SeriesSupported process..

165,95€

Χωρίς ΦΠΑ:133,83€

Asrock B850 Steel Legend WiFi AMD B850 Socket AM5 ATX

ProcessorSupported processor sockets: Socket AM5Processor manufacturer: AMDCompatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, ..

220,02€

Χωρίς ΦΠΑ:177,43€

Asrock B850M Pro RS AMD B850 Socket AM5 micro ATX

ProcessorCompatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 SeriesProcessor manufacturer: AMDSupported processo..

149,61€

Χωρίς ΦΠΑ:120,66€

Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX

ProcessorProcessor socket: Socket AM5Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 SeriesProcessor manufac..

136,75€

Χωρίς ΦΠΑ:110,28€

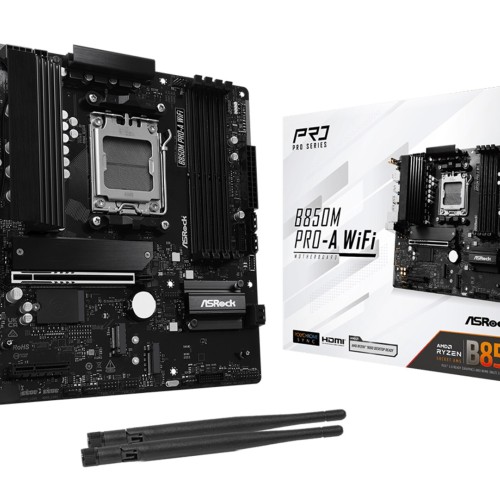

Asrock B850M Pro-A WiFi AMD B850 Socket AM5 micro ATX
