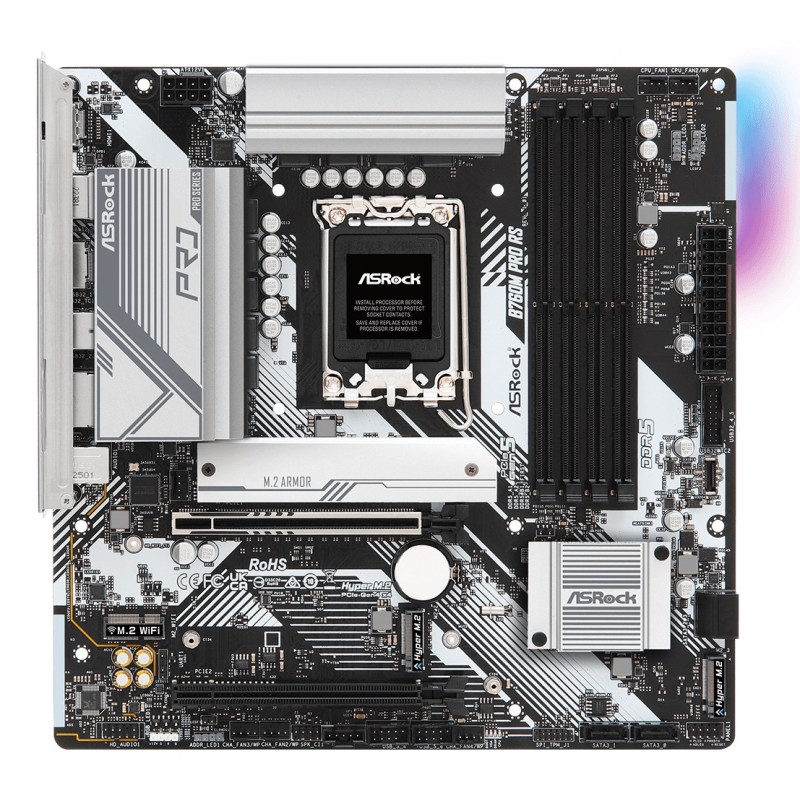

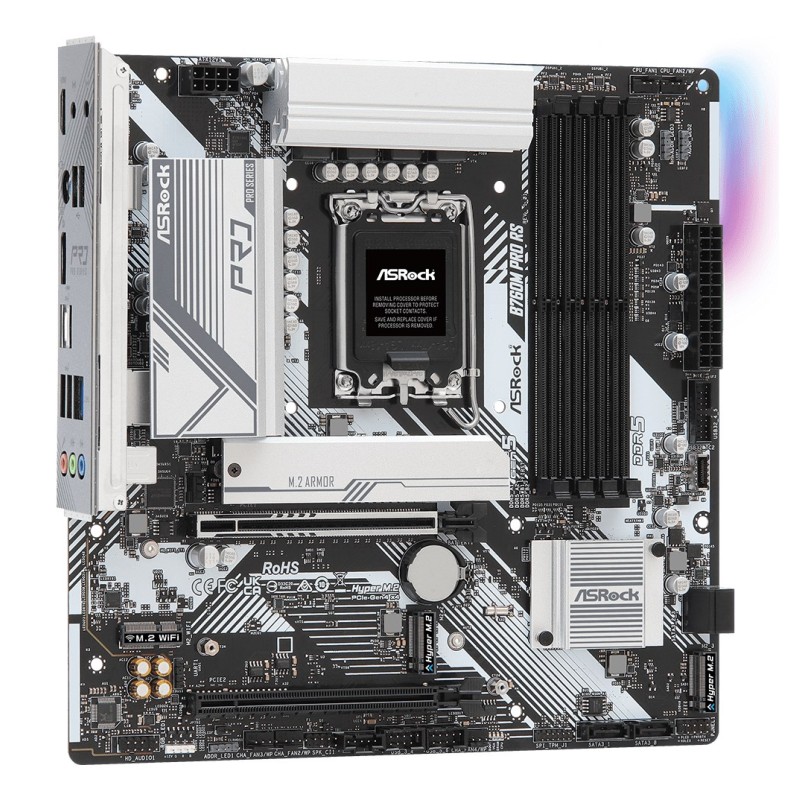

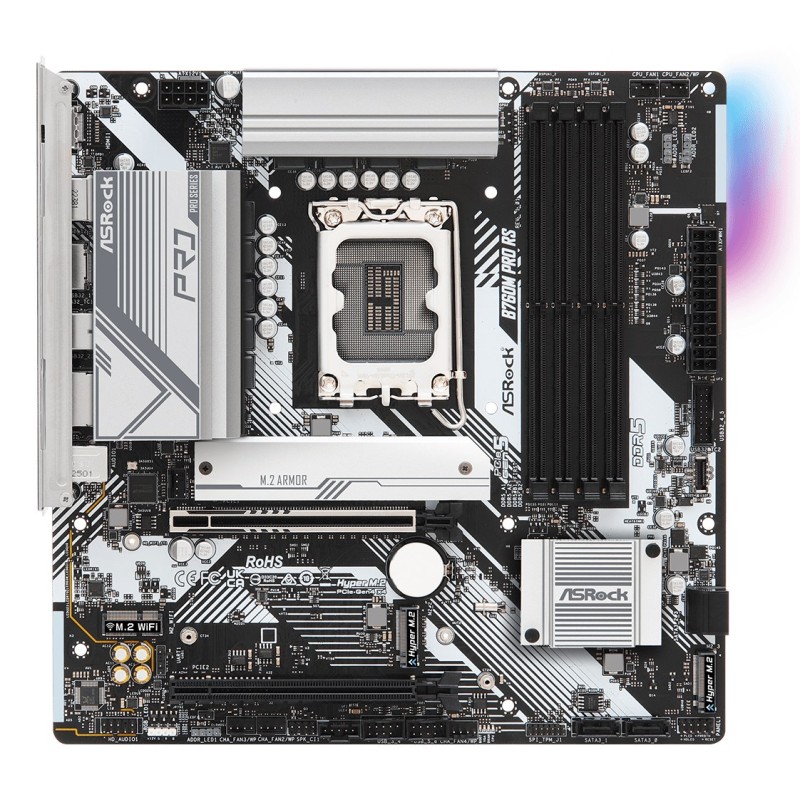

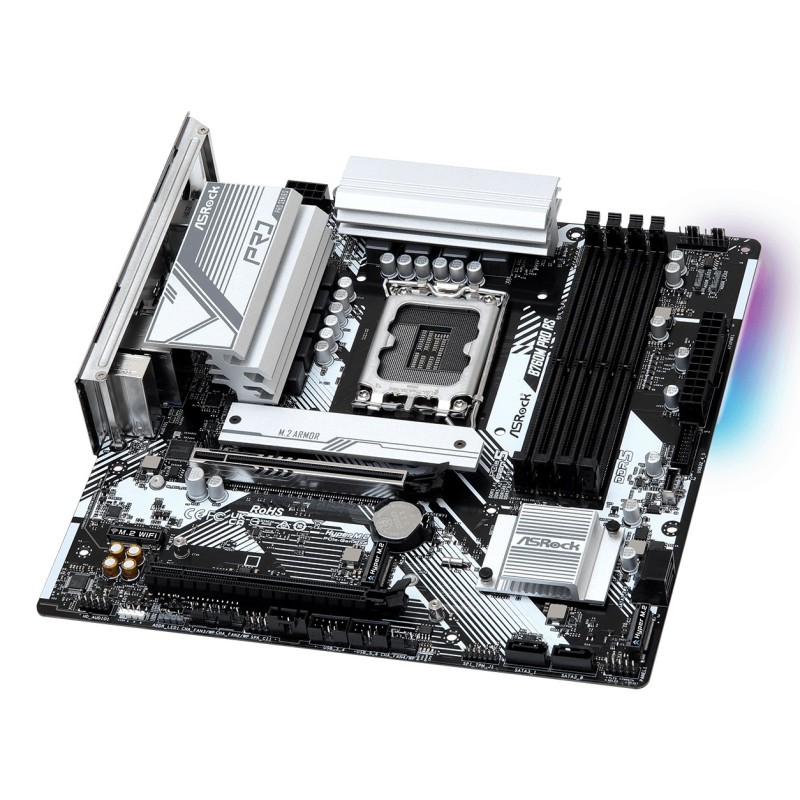

Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Features

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset family: Intel

Motherboard chipset: Intel B760

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Memory

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Number of memory slots: 4

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Memory slots type: DIMM

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

LAN controller: Realtek RTL8125-BG

Internal I/O

Front panel audio connector: Yes

Number of SATA III connectors: 4

CPU fan connector: Yes

Thunderbolt headers: 1

ATX Power connector (24-pin): Yes

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 6

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

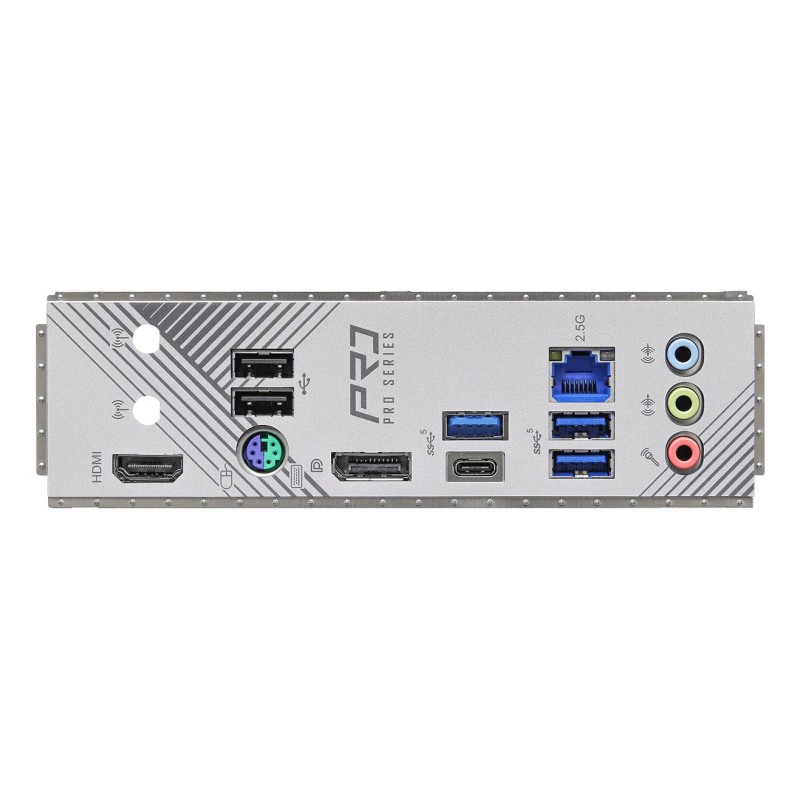

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

PS/2 ports quantity: 1

HDMI ports quantity: 1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Microphone in: Yes

Line-in: Yes

USB 2.0 ports quantity: 2

DisplayPort version: 1.4

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

ASRock B760I LIGHTNING WIFI Motherboard

ProcessorProcessor manufacturer: IntelSupported processor sockets: LGA 1700Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™..

197,14€

Χωρίς ΦΠΑ:158,98€

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX

ProcessorMaximum number of SMP processors: 1Processor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i..

164,70€

Χωρίς ΦΠΑ:132,82€

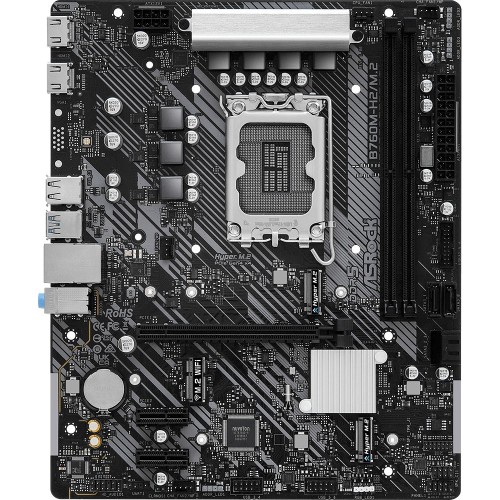

ASRock B760M-H2/M.2 motherboard
