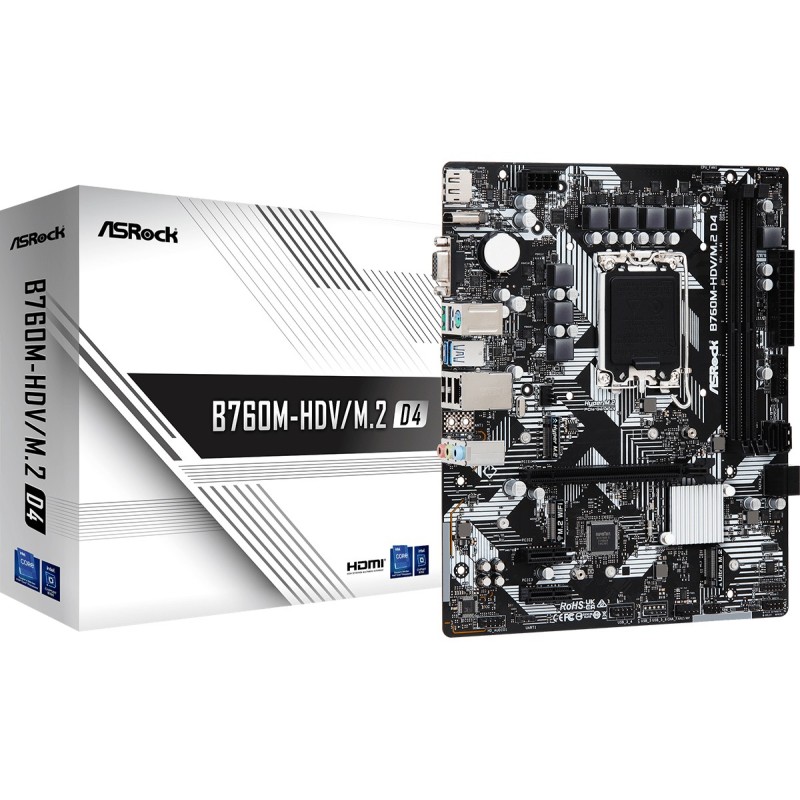

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Graphics

Parallel processing technology support: Not supported

HDCP: Yes

Features

Audio chip: Realtek ALC897

Windows operating systems supported: Windows 11 x64, Windows 10 Education x64

Motherboard chipset: Intel B760

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 3200 MHz, 4400, 5333 MHz

Unbuffered memory: Yes

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Maximum internal memory: 64 GB

Supported memory types: DDR4-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 244 mm

Depth: 201 mm

Network

LAN controller: Realtek RTL8111H

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Internal I/O

Front panel connector: Yes

CPU fan connector: Yes

TPM connector: Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Chassis intrusion connector: Yes

EPS power connector (8-pin): Yes

USB 2.0 connectors: 3

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 0, 10, 5

RAID support: Yes

Rear panel I/O ports

PS/2 ports quantity: 1

DisplayPorts quantity: 1

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

VGA (D-Sub) ports quantity: 1

Line-in: Yes

Microphone in: Yes

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
